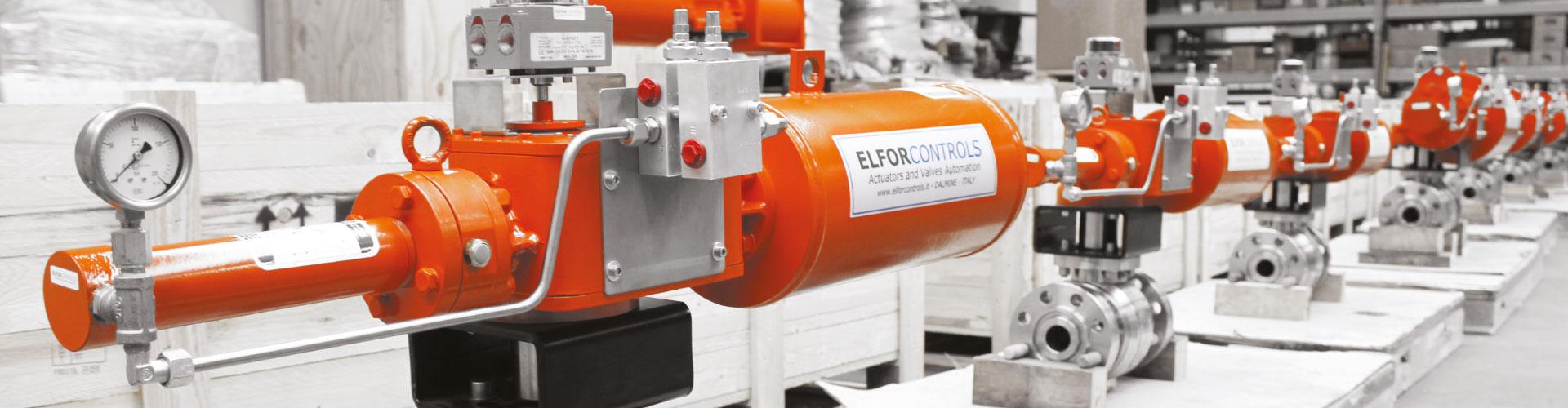

Scotch yoke pneumatic actuators engineering

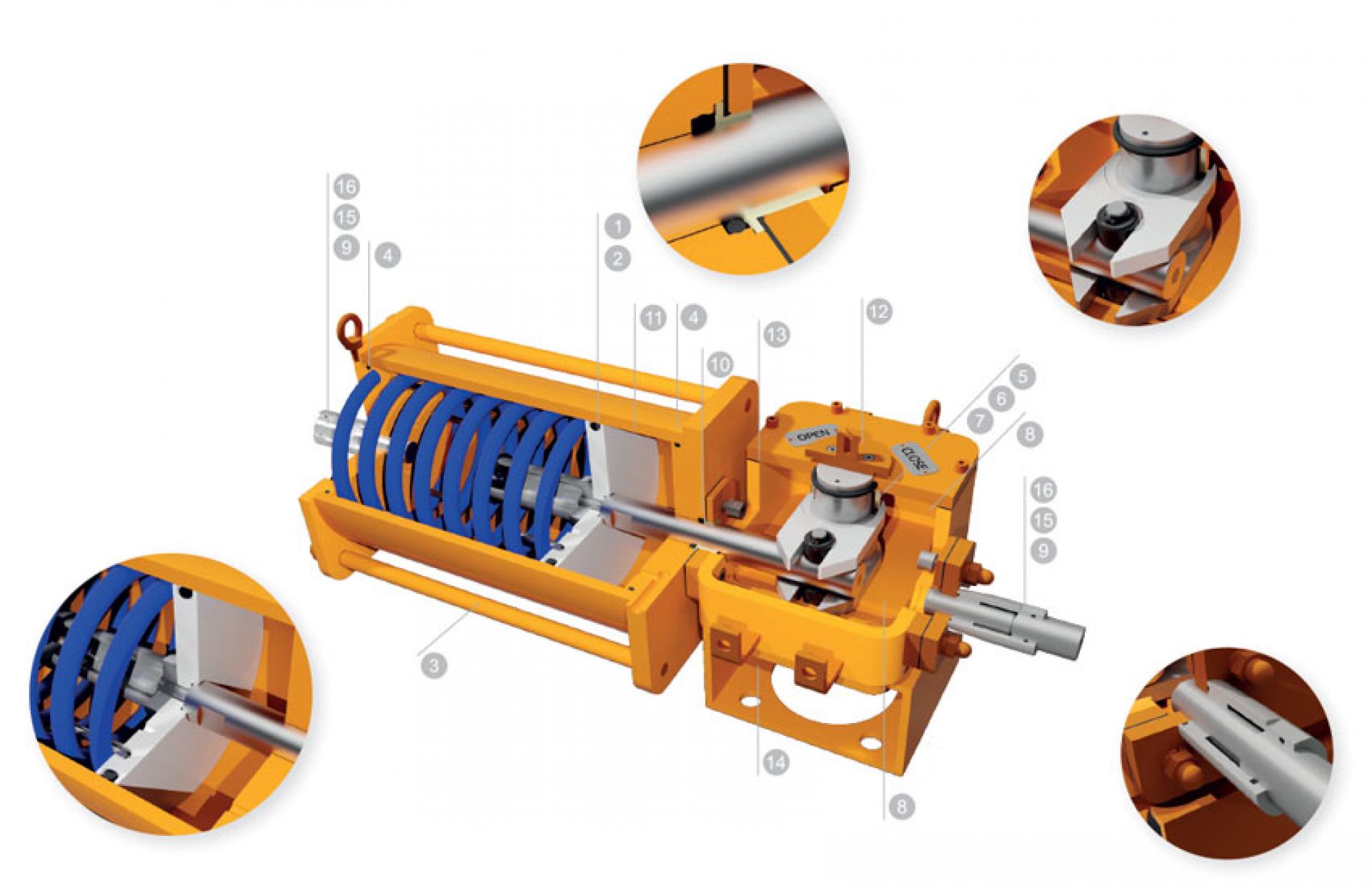

Elfor Controls Quarter Turn Scotch Yoke Pneumatic Actuators EC SERIES are designed and engineered to act all ¼ turn valves, to provide an output torque curve which covers the most common on-off or modulating valves torque requirement.

EC Series valve actuators can be supplied with either symmetrical, or canted yokes to optimize actuator sizing.

Main features

Totally weatherproof .

Carbon Steel and Stainless Steel Single or Double acting.

Heavy duty Scotch yoke mechanism design, symmetric or canted execution.

Flange connection according to ISO 5211.

Adjustable end stoppers, to ensure accurate angular stroke adjustment (standard execution 90° +/-5°).

Emergency manual override available on request

Modular design

Operating pressure up to 12 barg (174 psi)

Power supply air or sweet gas

Temperature range -60 to 100°C (-76 to 212°F)

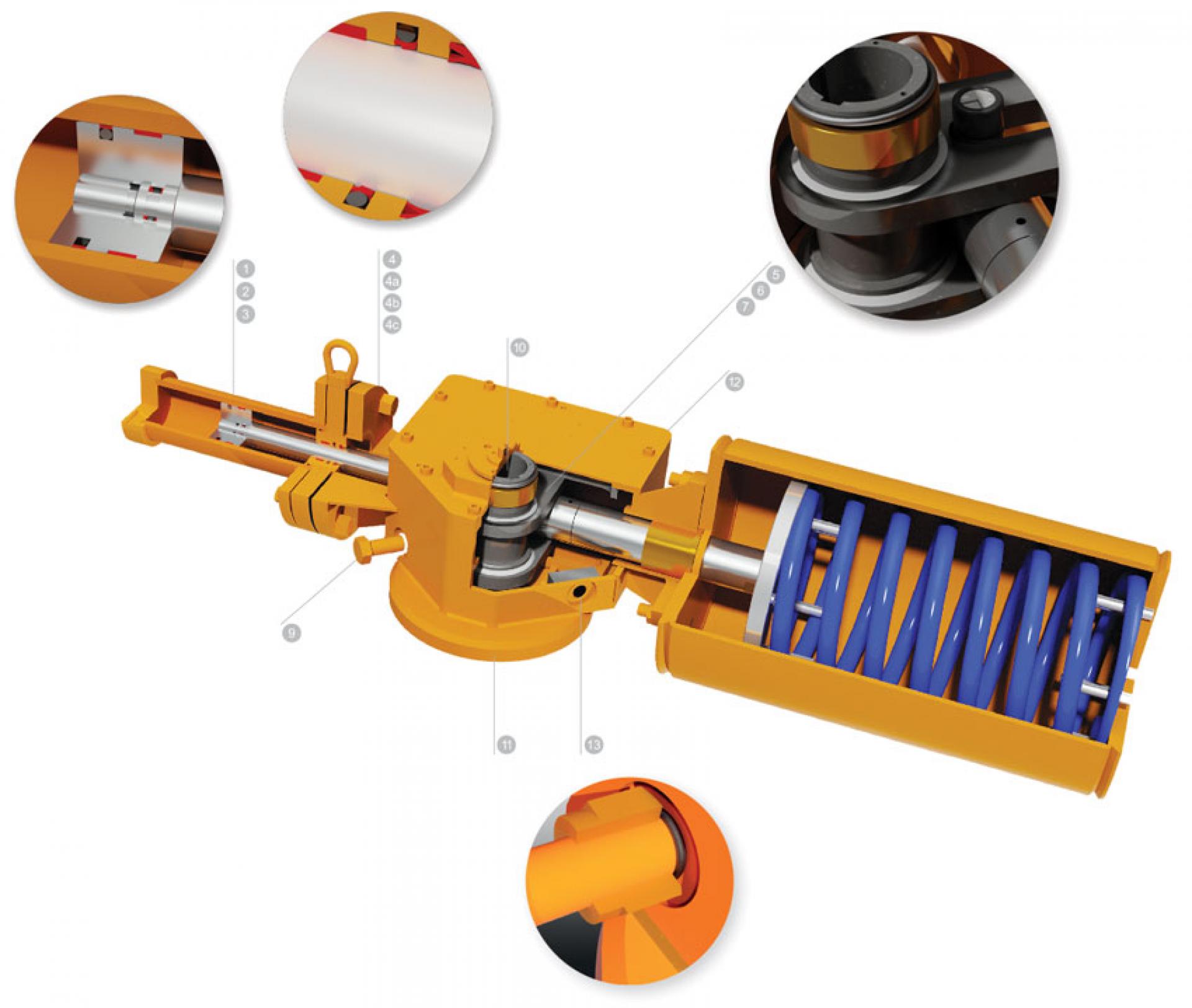

Scotch yoke hydraulic actuators engineering

Elfor Controls Quarter Turn Scotch Yoke Hydraulic Actuators EC SERIES are designed and engineered to act all ¼ turn valves, to provide an output torque curve which covers the most common on-off or modulating valves torque requirement.

EC Series valve actuators can be supplied with either symmetrical, or canted yokes to optimize actuator sizing.

Main features

Totally weatherproof .

Carbon Steel and Stainless Steel , Single or Double acting.

Heavy duty Scotch yoke mechanism design, symmetric or canted execution.

Flange connection according to ISO 5211.

Adjustable end stoppers, to ensure accurate angular stroke adjustment (standard execution 90° +/-5°).

Emergency manual override available on request

Modular design

Operating pressure up to 350 barg (5000 psi)

Power supply Oil

Temperature range -60 to 100°C (-76 to 212°F)

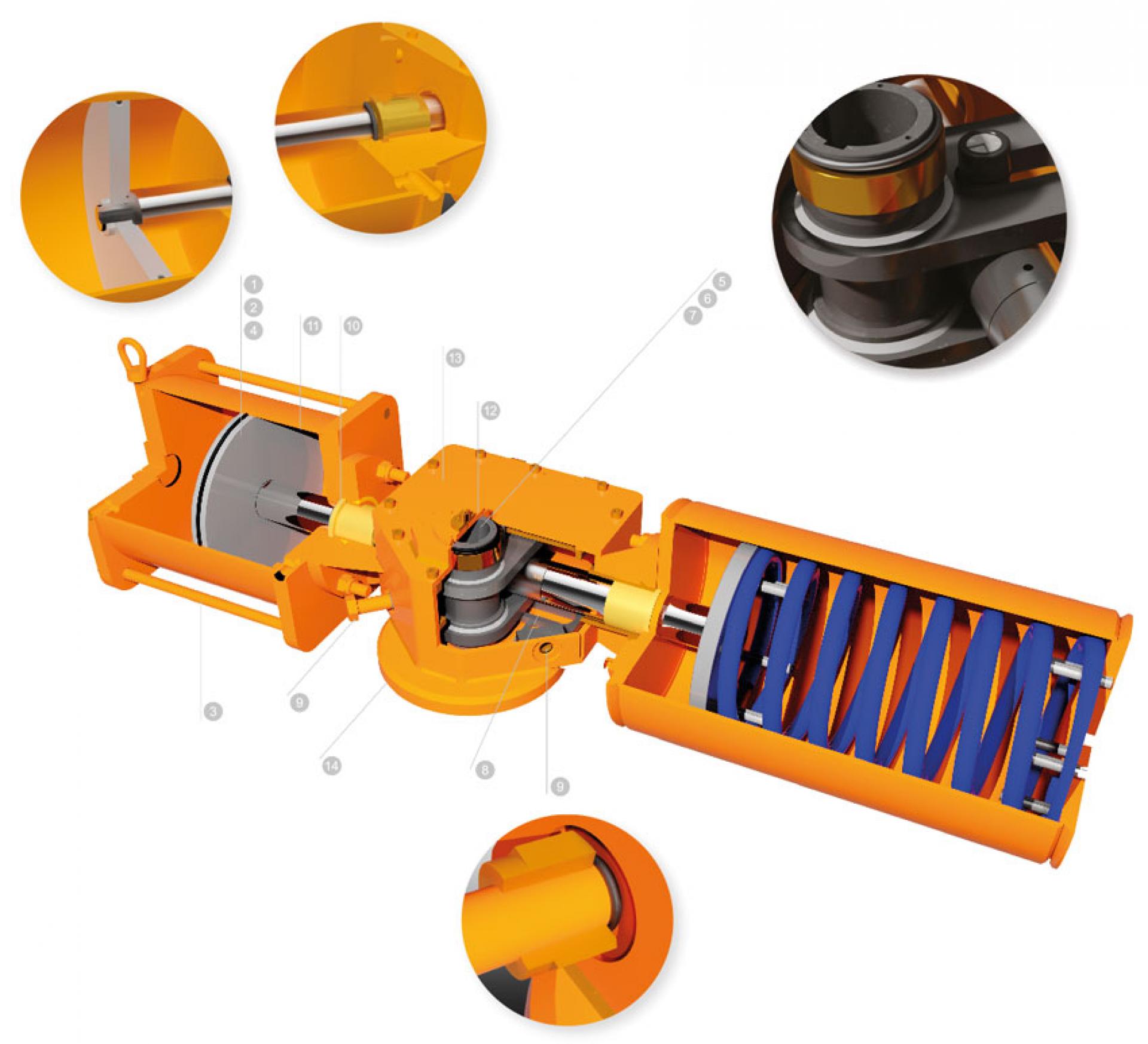

Scotch yoke compact actuators engineering

Elfor Controls Quarter Turn Scotch Yoke Cosmpact Actuators ECK SERIES are designed and engineered to act all ¼ turn valves, to provide an output torque curve which covers the most common on-off or modulating valves torque requirement.

Main features

Totally weatherproof .

Carbon Steel and Stainless Steel , Single or Double acting.

Heavy duty Scotch yoke mechanism design.

Flange connection according to ISO 5211.

Adjustable end stoppers in Stainless Steel

Emergency manual override available on request

Modular design

Temperature range -60 to 100°C (-76 to 212°F)

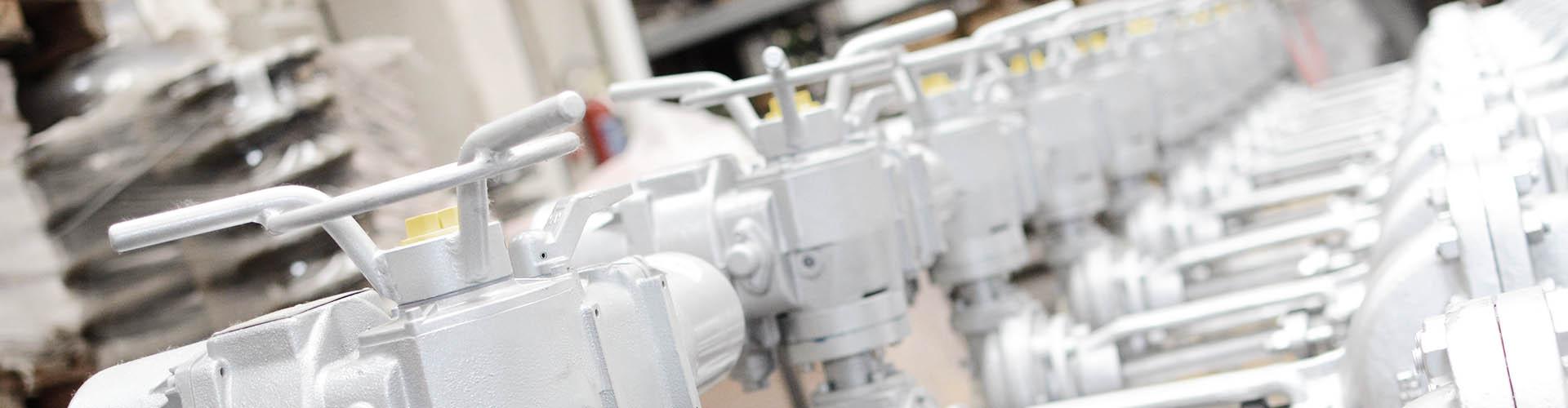

SEM SERIES

Elfor controls electric actuators, with their rugged design combined with a total sealed electrical enclosure and oil filled worm gearbox, provide an ideal solution for both on- off and motorized valves wherever the need for total reliability under the worst operation conditions is required.

Elfor controls actuators are used in all areas of industry including chemical processing, power, gas and marine.

The SEM 10 range covers torques up to 125 Nm and thrusts up to 45 KN for direct mounting on gate valves and, in combination with Elfor controls gearboxes, torques up to 5000 Nm for use on quarter-turn valves.

Elfor controls SEM 10 electric actuator incorporates everything required to operate a valve from a three phase supply: motor, reduction gearbox, emergency declutchable handwheel, torque, and limit switch mechanism,

Ant condensation heater , mechanical position indicator and optional extras as integral reversing contactor starter, extra travel switches, potentiometric and current position transmitter

Quarter Turn Rack and Pinion Pneumatic Actuators

Elfor Controls Quarter Turn Rack and Pinion Pneumatic Actuators are pneumatically operated, quarter-turn rotary, dual rack and pinion compact design.

Manufactured in full compliance with the latest requirement of ISO5211 and EN12116.

Compact modular design with same body and end caps for double acting and spring return design.

Hard anodized extruded aluminum body with honed internal surface.

Dual rack and pinion design for compact and lightweight construction, high cycle life, symmetrical mounting position, fast and efficient operation.

Modular pre-loaded spring cartridges for a safe and efficient use of actuator.

Two independent travel stops for an easy and precise setting (+/- 5°) in both directions.

Provisions for mounting solenoid valves and accessories according to Namur VDI/VDE 3845.

Mechanical virtual position indicator

The shaft is designed to allow manual override by simply removing the position indicator

All seals in nitrile rubber are permanently lubricated.

Key features

Rack and pinion mechanism

Single or double acting versions

Temperature range: – 20°C / + 50°C (Standard)

Temperature range: – 60°C / +80°C (Low)

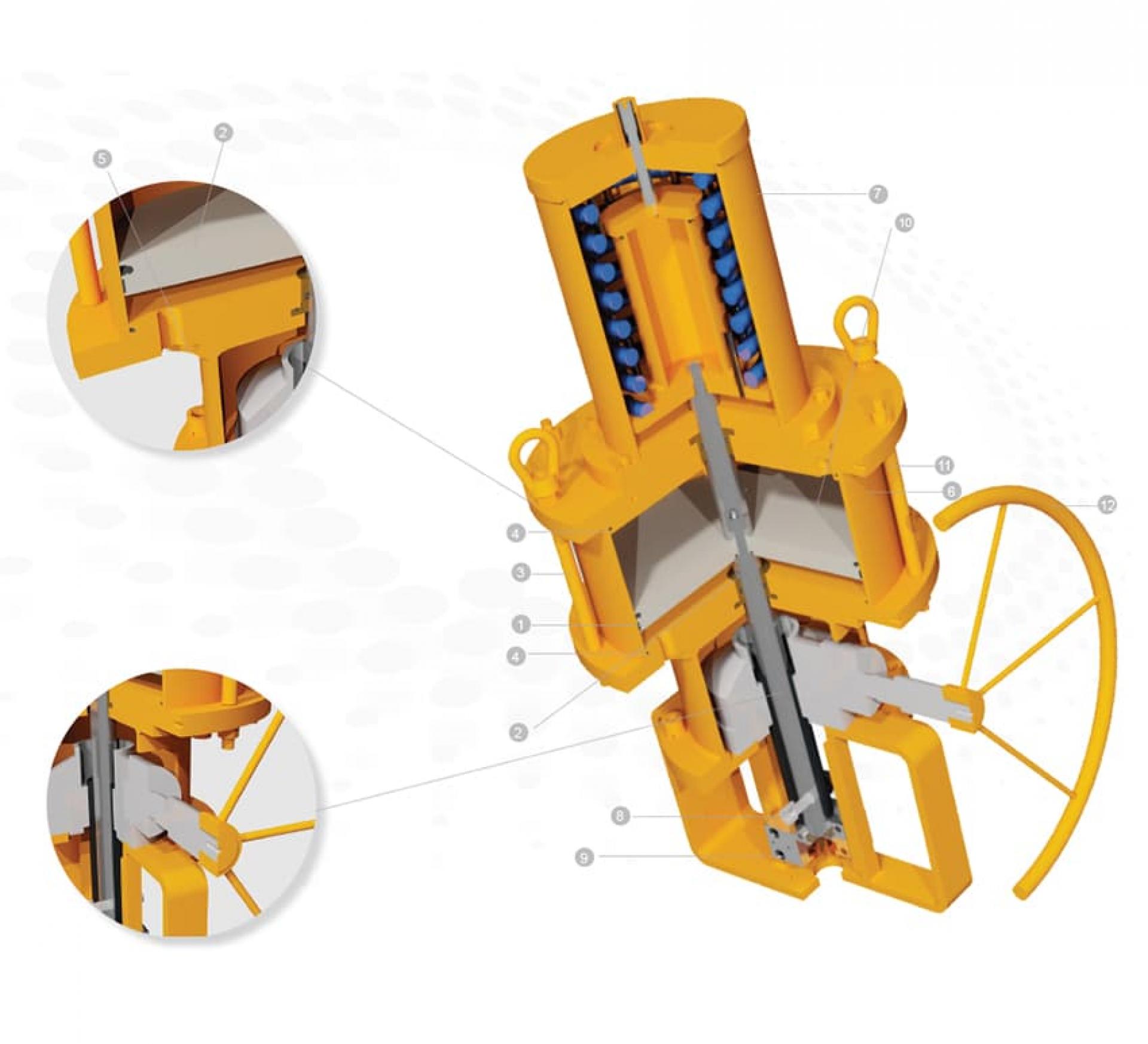

Linear actuators supply - ECT series

Elfor Controls ECT SERIES LINEAR ACTUATORS are characterized by their engineering design and efficient modular assembly. The modules are designed for simple disassembly which allows the actuator to be quickly and easily converted from a double acting to a single acting configuration, or for the addition of optional devices such as a manual override units.

Elfor Controls actuators are a range of pneumatic actuators design to drive valves for Chemical / Paper / Power and Oil &

Gas applications. Our long and profound experience allows us to supply products suitable for use in the most arduous of

environments.

Suitable for modulating and on / off applications

Sizes available from DN 200 to 850 mm (others available upon request)

Max Thrust 283Kn AT 5 kPa (others available upon request)

Strokes available from 10 to 1000mm (alternatives available upon request)

Double or single acting actuator with or without spring

Single / Double / Triple piston configurations also available by application

Carbon steel body

Stainless steel available for special requirements

Suitable for use in Chemical / Paper / Power and Oil & Gas applications

Carbon steel piston with PTFE / rubber seals to reduce friction and avoid stick slip effect, even after prolonged periods

without operation

External spring package with no touch safety assembly execution

Actuator can be supplied with Hand-wheel-type manual override on request

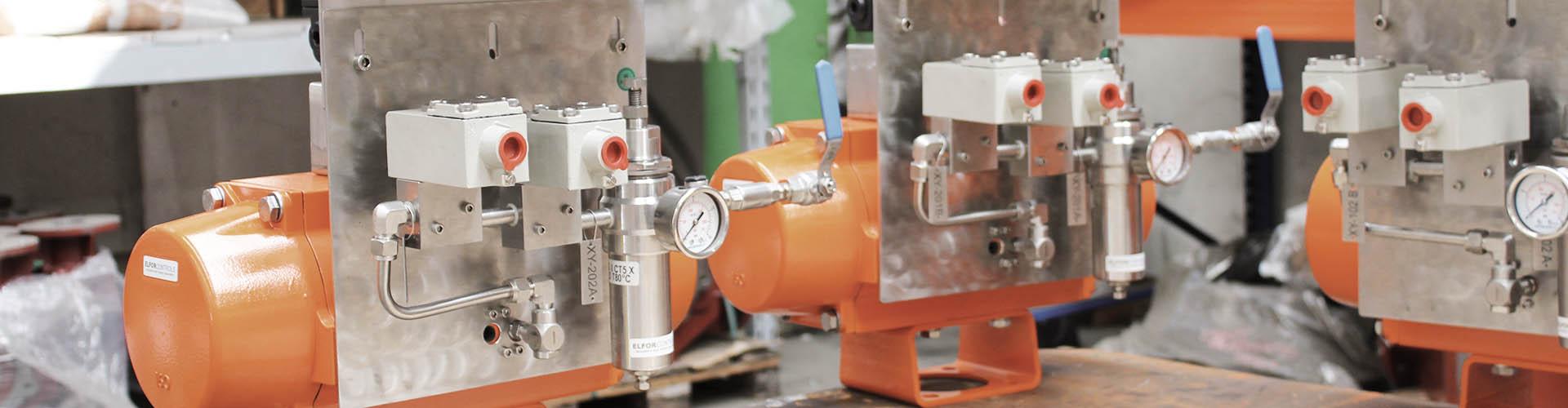

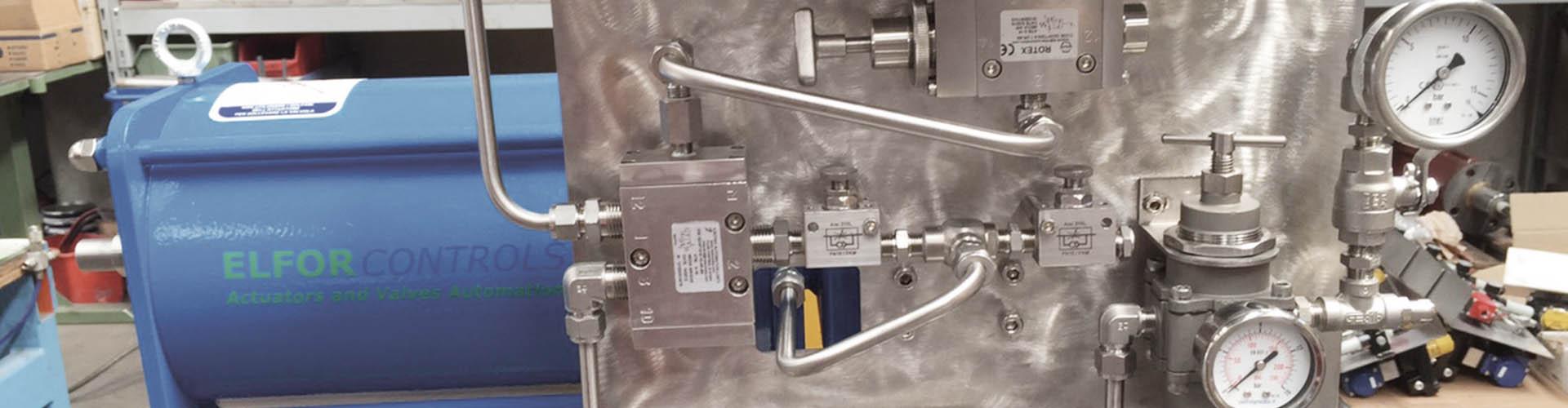

Control System & Remote Controller

The global Oil & Gas industry employs ever more complex process systems to optimize the functioning and to minimize the event of safety related incidents.

ELFOR CONTROLS constantly monitors the development of new standards and technology, enabling to keep up with the constantly changing demands of the client in order to satisfy all customers’ requirements and project specifications.

The control systems for actuators have fundamental importance to guarantee actuators performance, functionality and reliability.

ELFOR CONTROLS control systems are generally an integral part of each actuator; permit a local or remote control by electric or pneumatic signals for On/Off, Modulating and Emergency Shut Down valve.

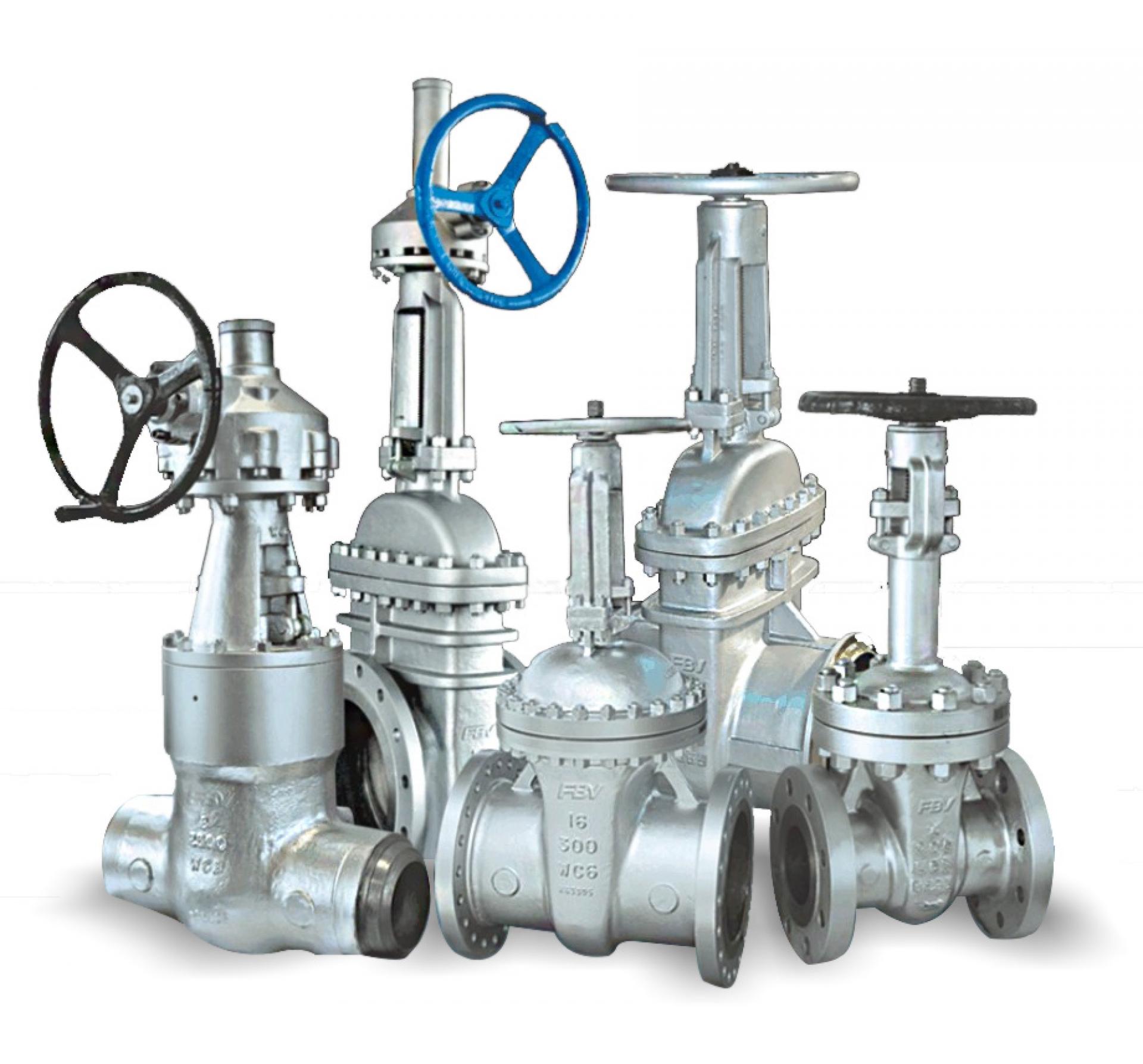

Accessories for actuators manufacturer

Thanks to the cooperation with all most well known valves manufacturer, Elfor Controls is able to supply a complete valve package to clients all over the world, according with customer’s needs.
