Company profile

Tecno meccanica emiliana Srl

Tecno Meccanica Emiliana S.r.l. was established in 1995. The company structure has been divided into three different activities: 1)Spare parts for NOV, Wirth, Ideco, Lewco, LTI, Canrig, EMSCO, BOMCO. 2)Mechanical carpentry, mechanical machining with CNC 3)Service team available 24/7 worldwide for Oil&Gas drilling rigs maintenance and recertification activities The milling and turning department is equipped with numerical control (CNC) and machining is carried out with the help of CAD/CAM systems with up to five axes (the milling working range from 0 mm to 6,500 mm, while the maximum turning diameter is 2,600 mm).

TME is working in various applications (Automotive, Aerospace, Oil & Gas, Drilling, Earthmoving, packaging, etc.). TME's achieve API Q1, API 6A, API 7K, API8C and the ISO 9001:2015 qualifications.

Tecno Meccanica Emiliana matured a significant experience in projecting, constructing and repairing components for Oil & Gas Industry, including:


- Components and spare parts for drilling rigs

- Components and assembled units for mud pumps, top drive, iron roughneck and drawworks

- Components and special equipment for piping

- Special forged fittings

Products

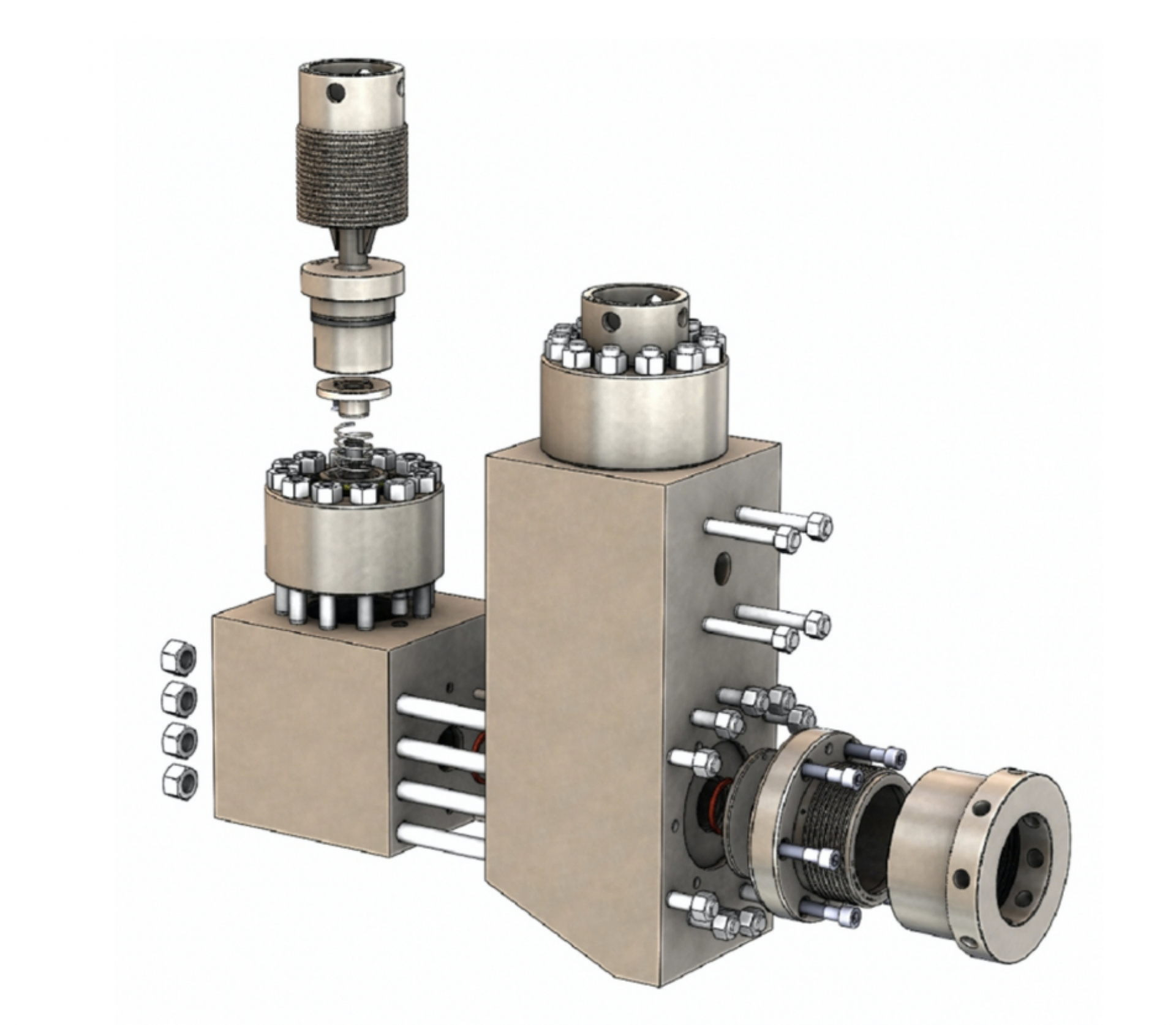

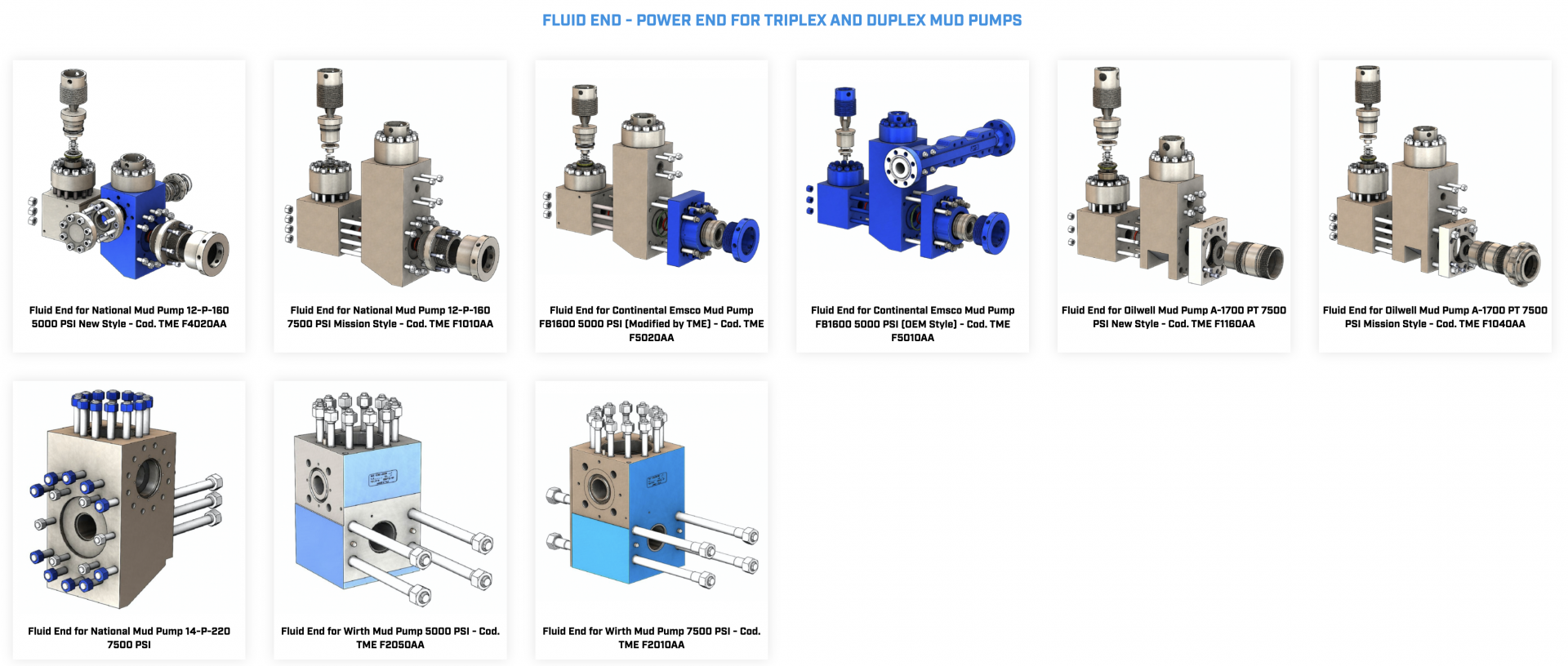

FLUID END - POWER END FOR TRIPLEX AND DUPLEX MUD PUMPS

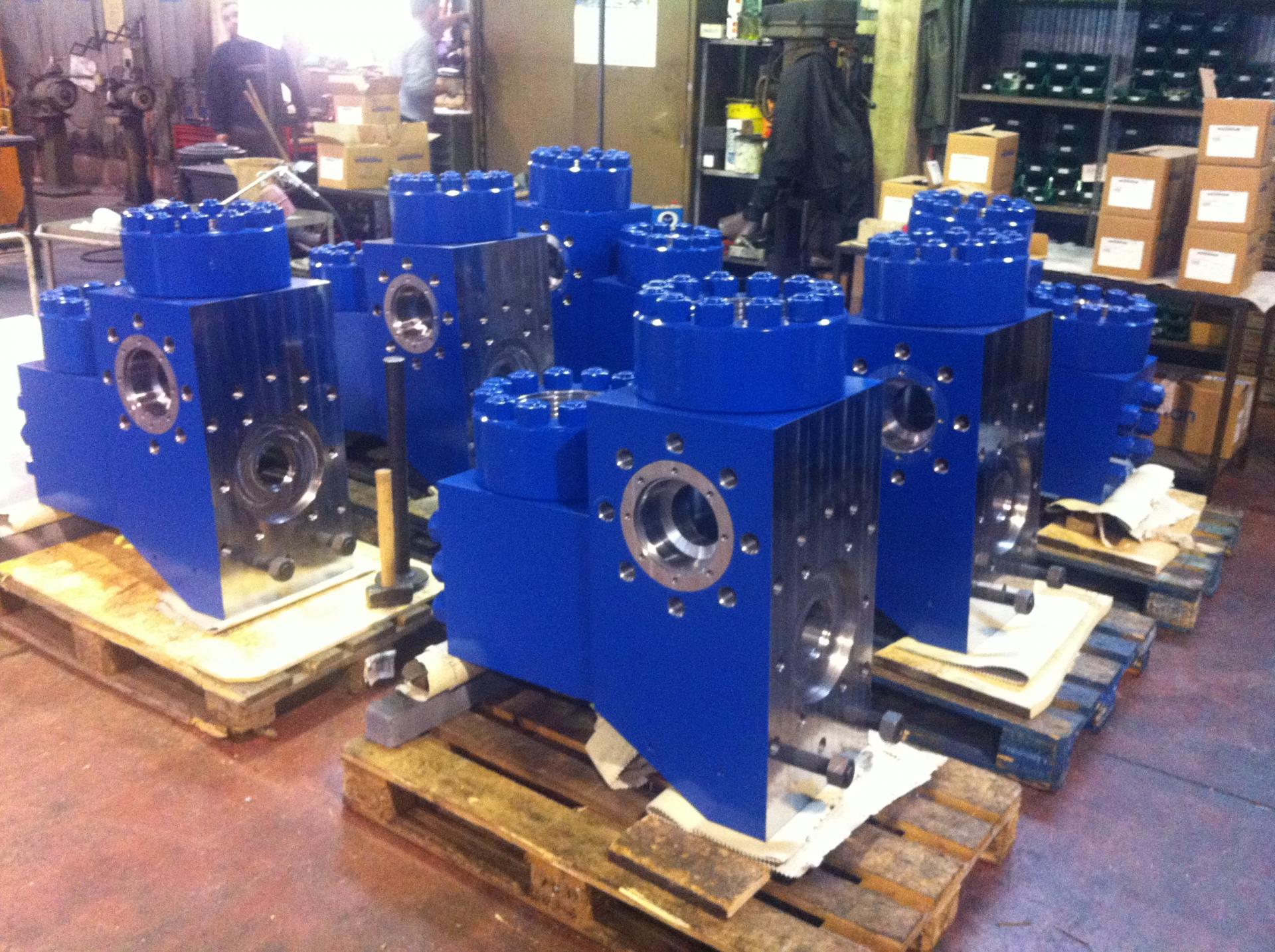

Tecno Meccanica Emiliana realizes Complete Fluid End and Power End Groups for both Duplex and Triplex Mud Pumps in different sizes and types. The construction cycle of such groups starts with the acquisition of the primary raw materials from which are then derived the different components by means of machining with machine tools, these components are then assembled to obtain the finished Groups.

We are also be able to provide separately all of the Fluid End components and Power End components that we make, even as Spare Parts.

Each single detail that makes up the Fluid End and Power End, undergoes a heat treatment to obtain higher wear resistance and higher durability in time.

Like all our products, we realize these Fluid Ends / Power Ends using only high quality Italian materials.

To ensure the ultimate suitability, TME inside performs strict non-destructive testing, such as ultrasound inspections and penetrant tests, and severe dimensional inspections.

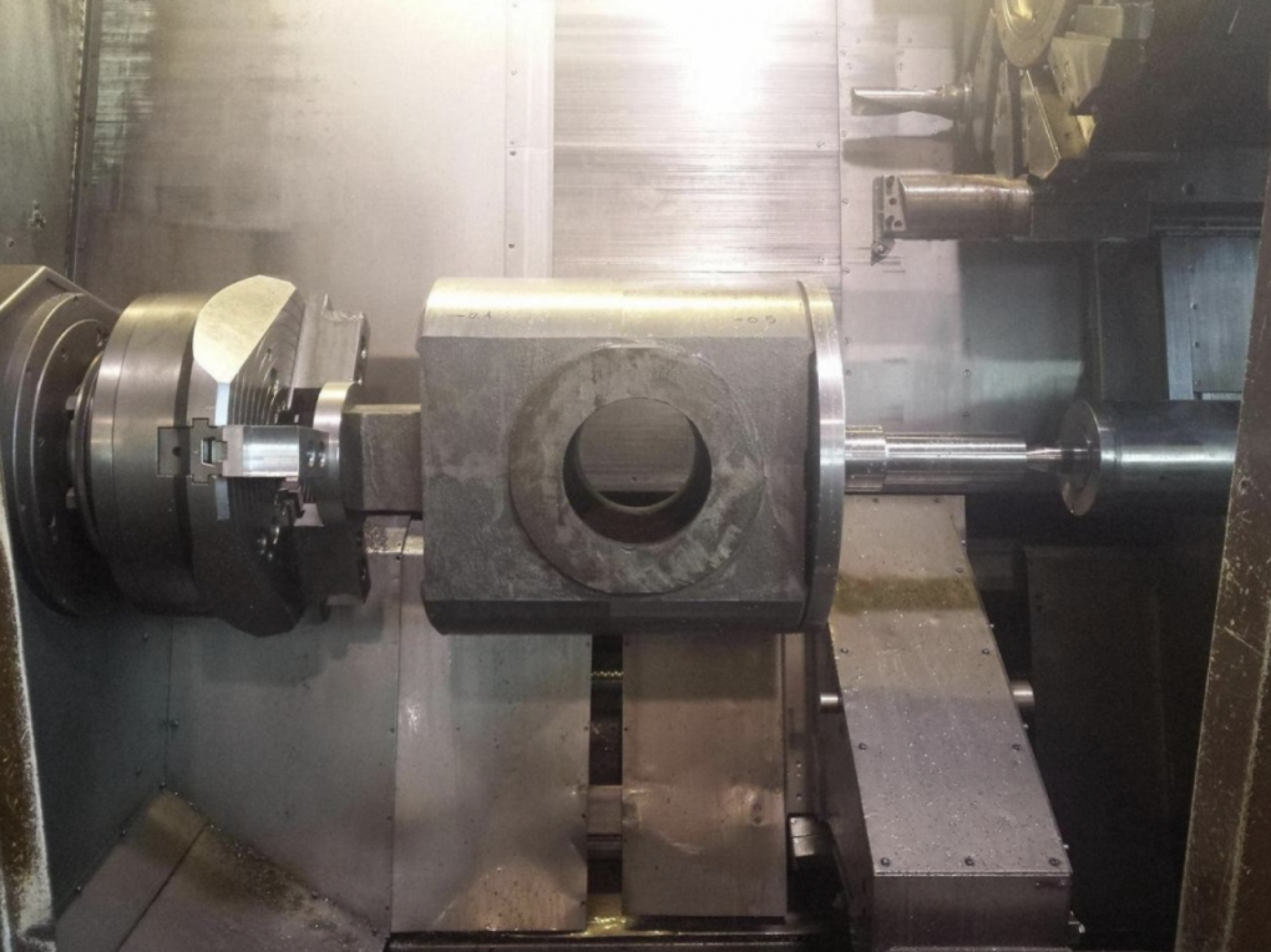

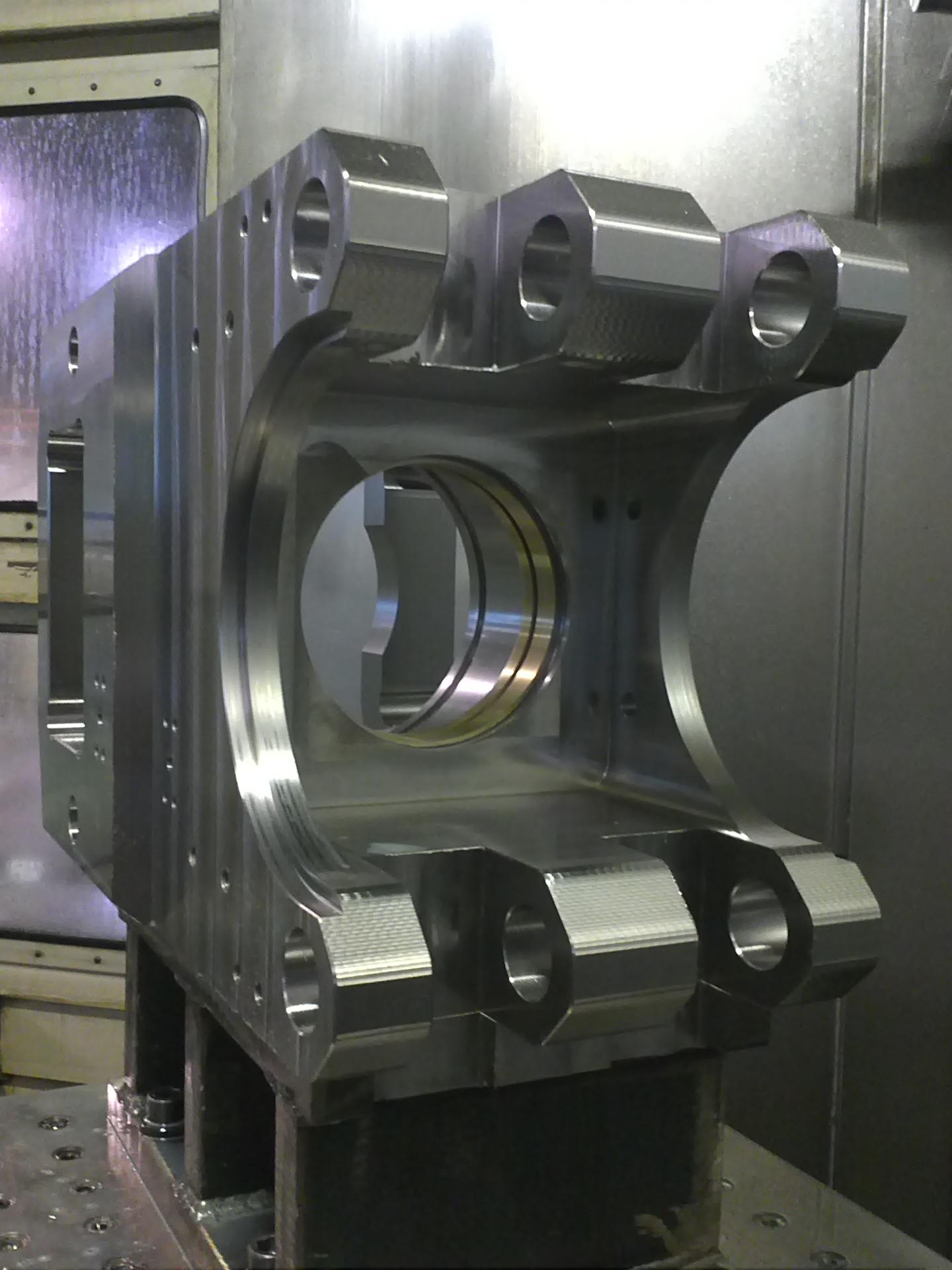

Mechanical processes are performed on our NC centers, while the assembly of each single detail takes place in our assembly department.

Find out more

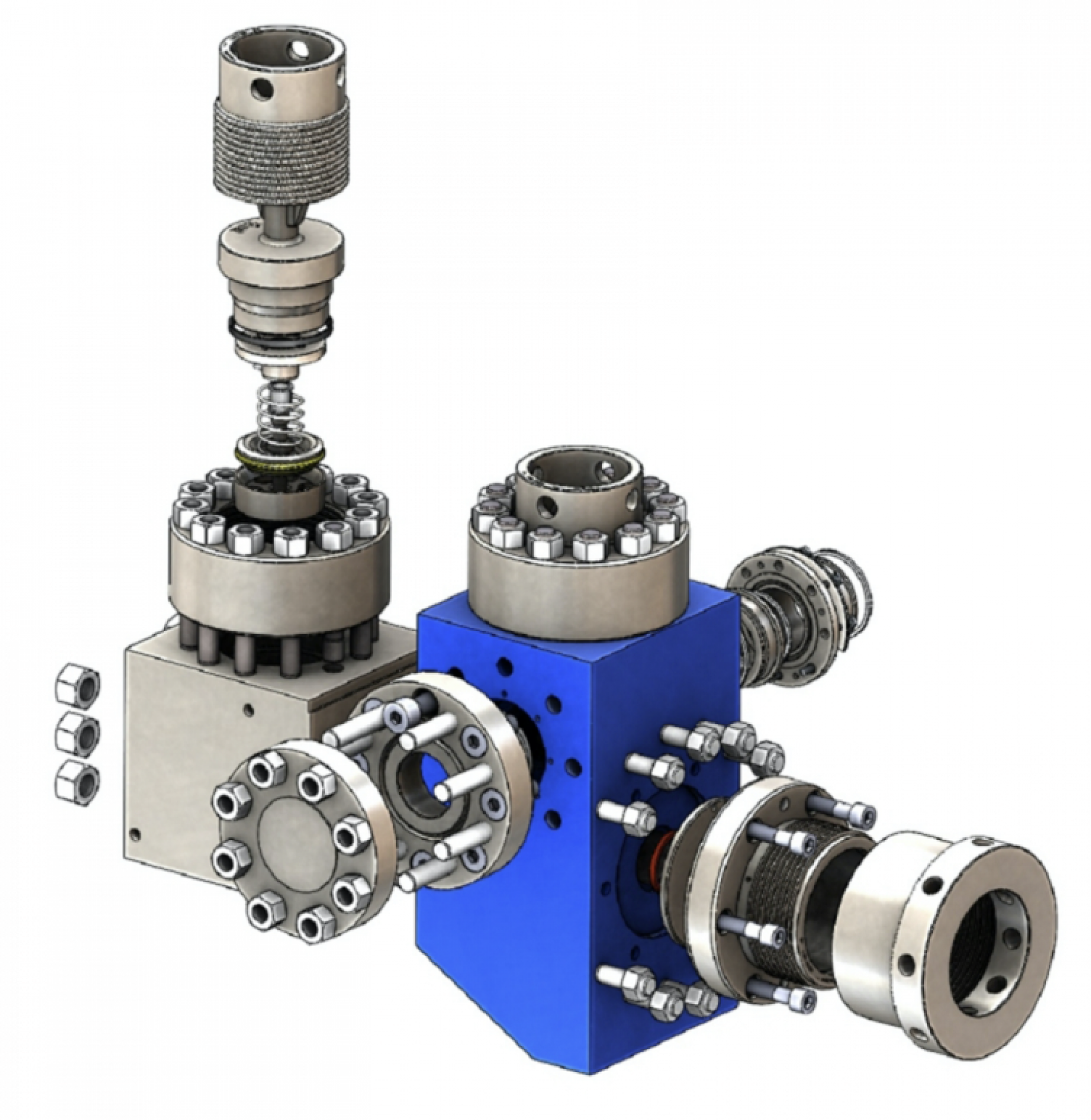

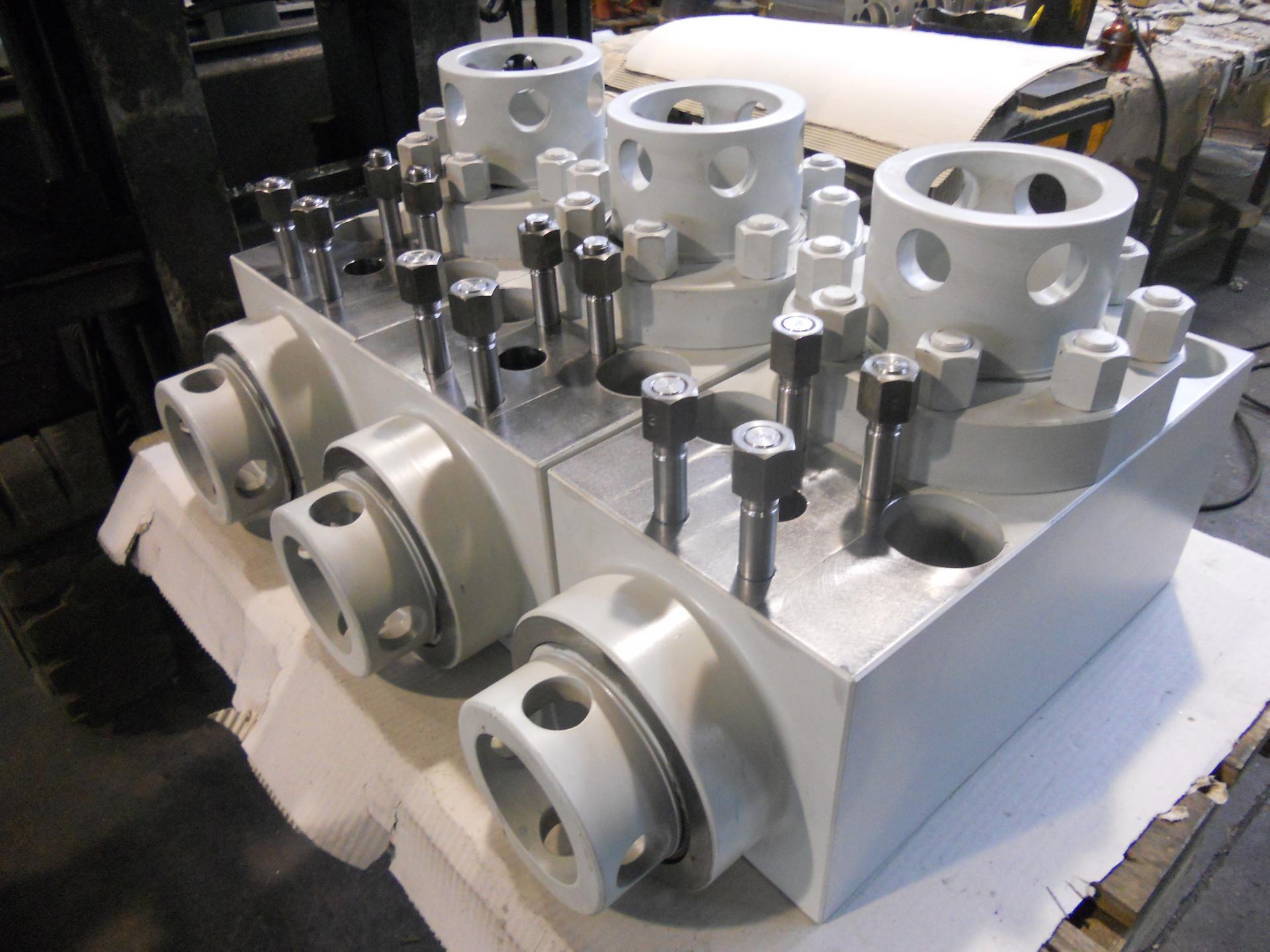

Fluid End for National Mud Pump 12-P-160 5000 PSI New Style - Cod. TME F4020AA

Tecno Meccanica Emiliana realizes Complete Fluid End Groups for National 12-P-160 5000 PSI New Style.

We are also be able to provide separately all the components of these Fluid Ends, also as Spare Parts.

Like all our products, we realize these Fluid Ends with only italian sourced materials, certified and high quality.

Every single detail that makes up the Fluid End, undergoes a heat treatment to improve the wear resistance and to increase durability in time.

During the production cycle, these Fluid Ends have strict non-destructive testing, as ultrasound inspections and penetrant tests to ensure the ultimate suitability.

Mechanical processes are performed at our NC centers, while the assembly of each Fluid End performed at our assembly department.

Find out more
Discover all our products

COMPONENTS MADE DESIGN FOR "OIL & GAS" INDUSTRY

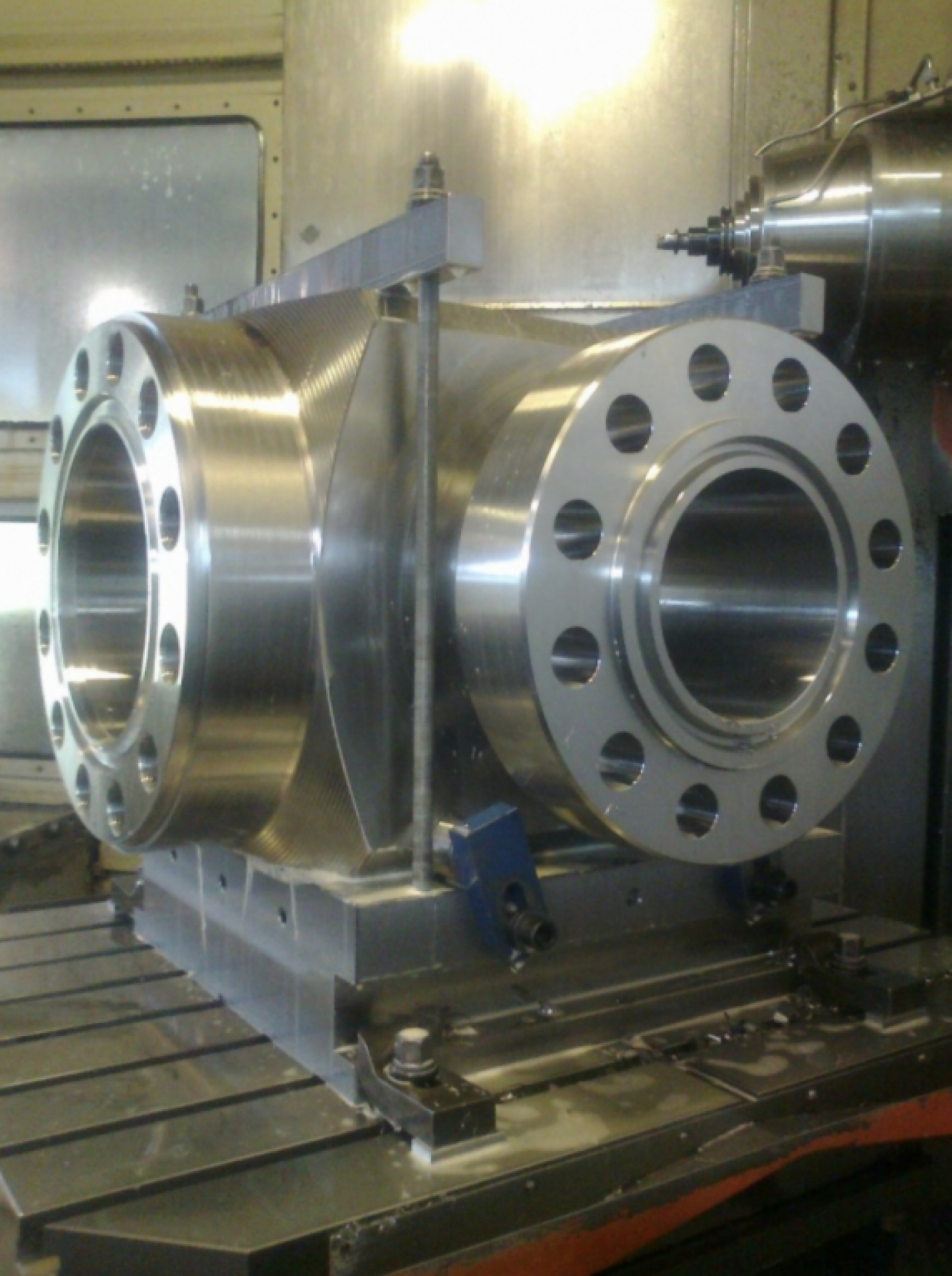

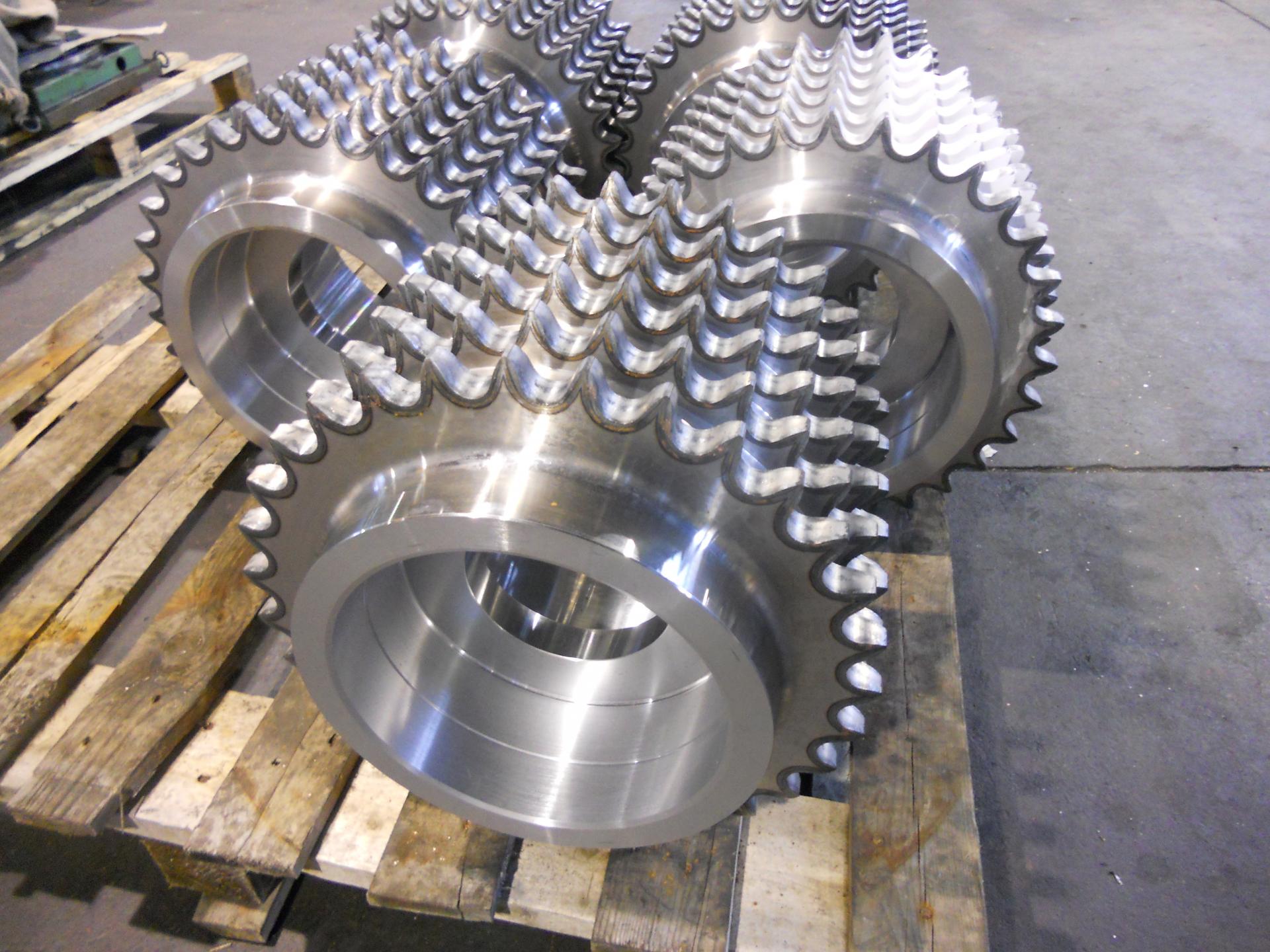

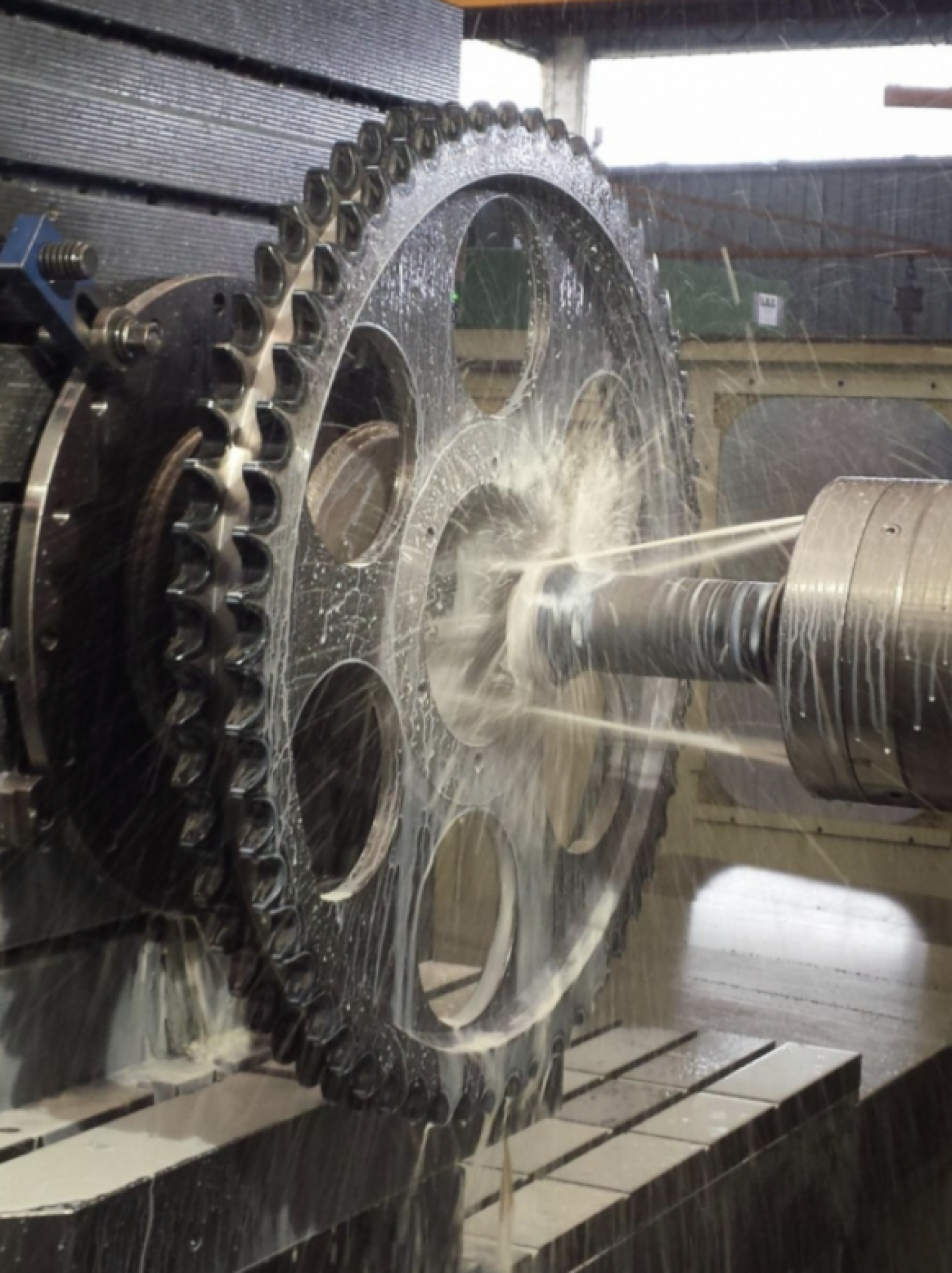

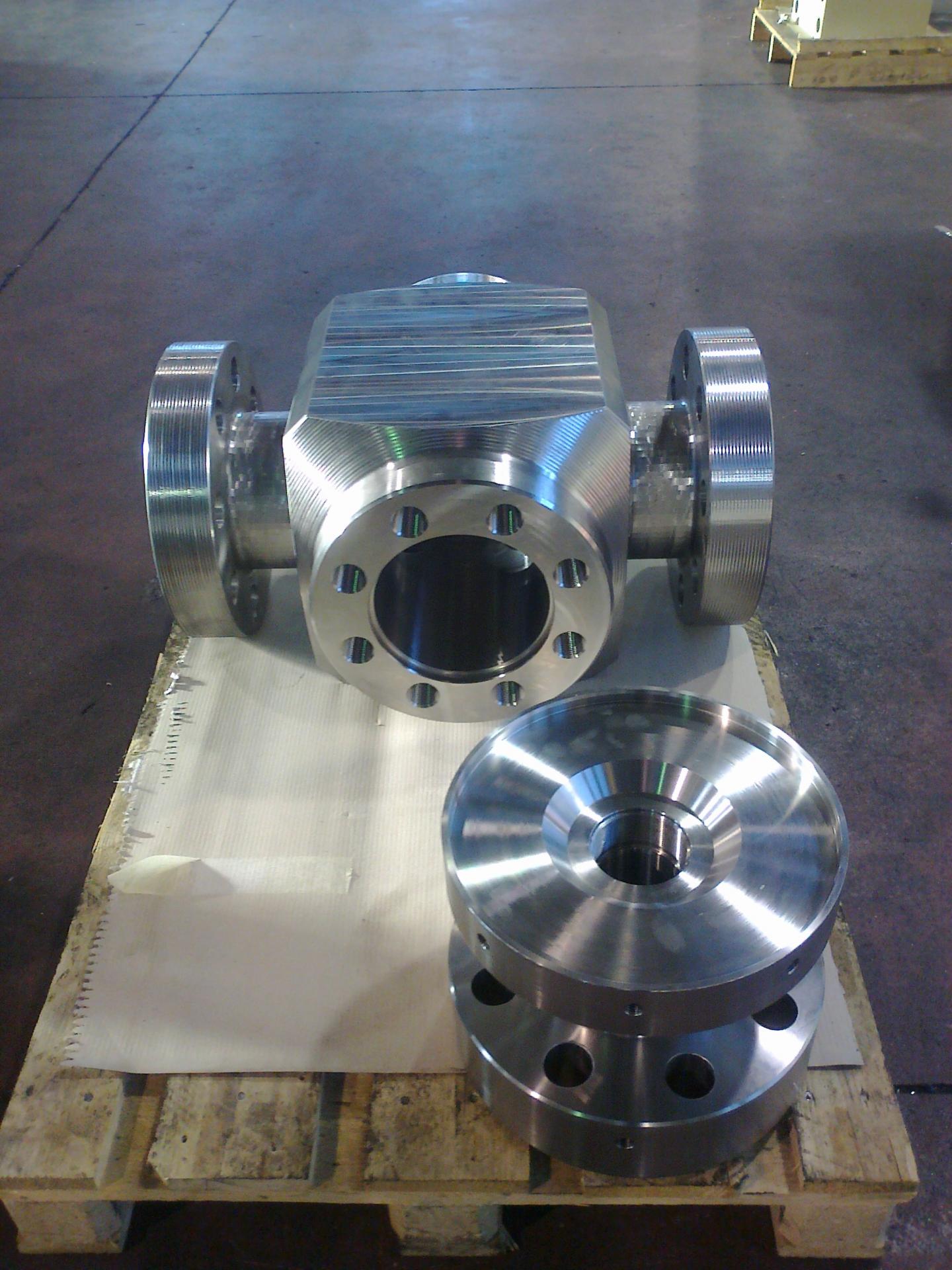

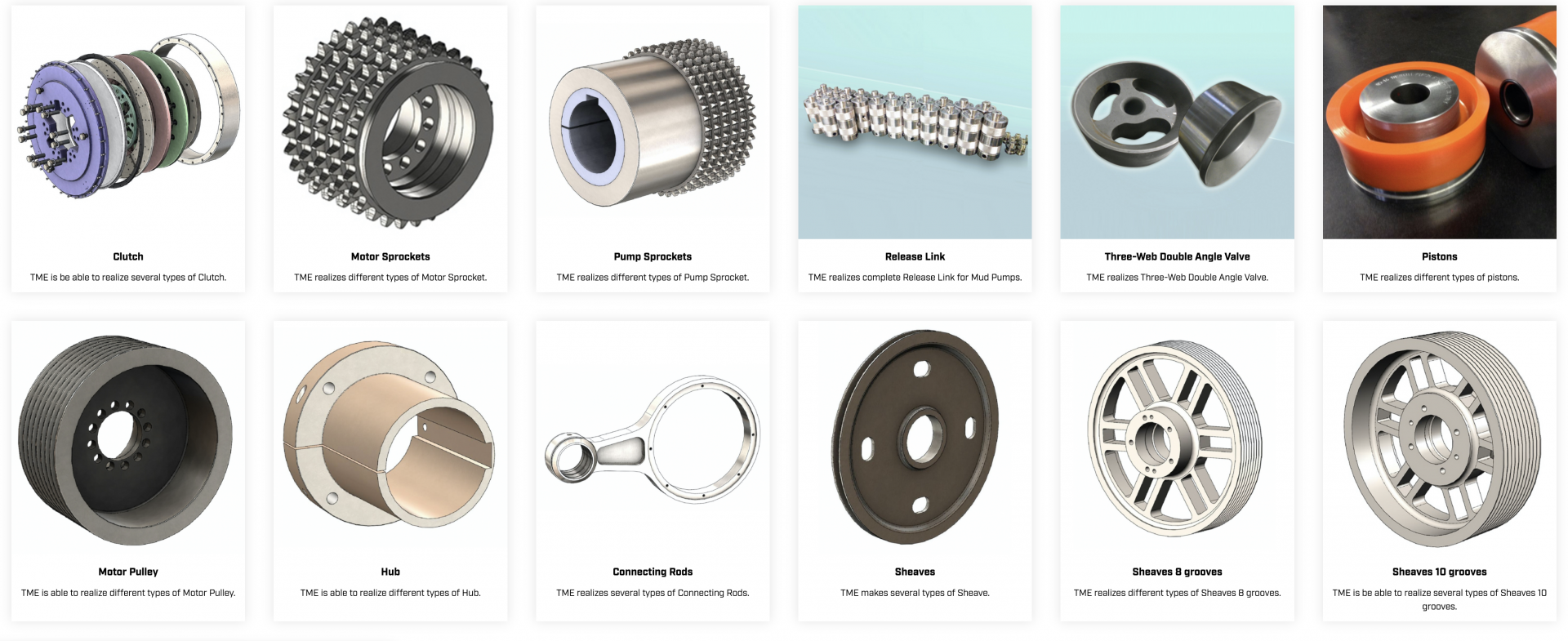

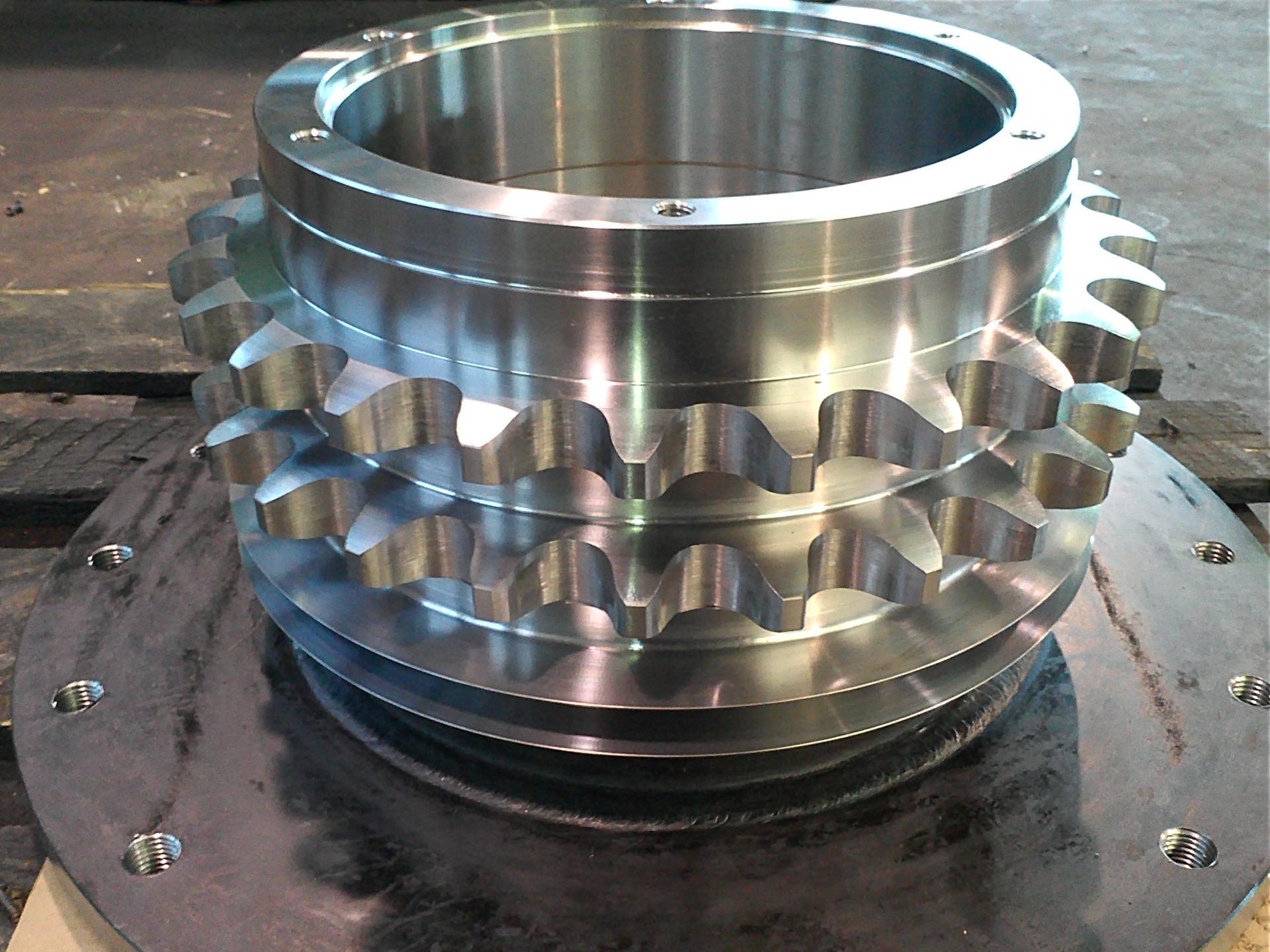

Tecno Meccanica Emiliana realizes, in addition to Fluid End Groups, several other components that are used in drilling rigs and Oil & Gas extraction (such as for example, tees, crosses, adapter spools, spacer spools, flanged connectors, drill stem subs, sprockets, gears, gears chain, pulleys to multiple gorges, crates headstocks, liners, pistons, ecc...). Moreover, with its own technical department, it has the ability to design and develop even parties for special applications on request of customers.

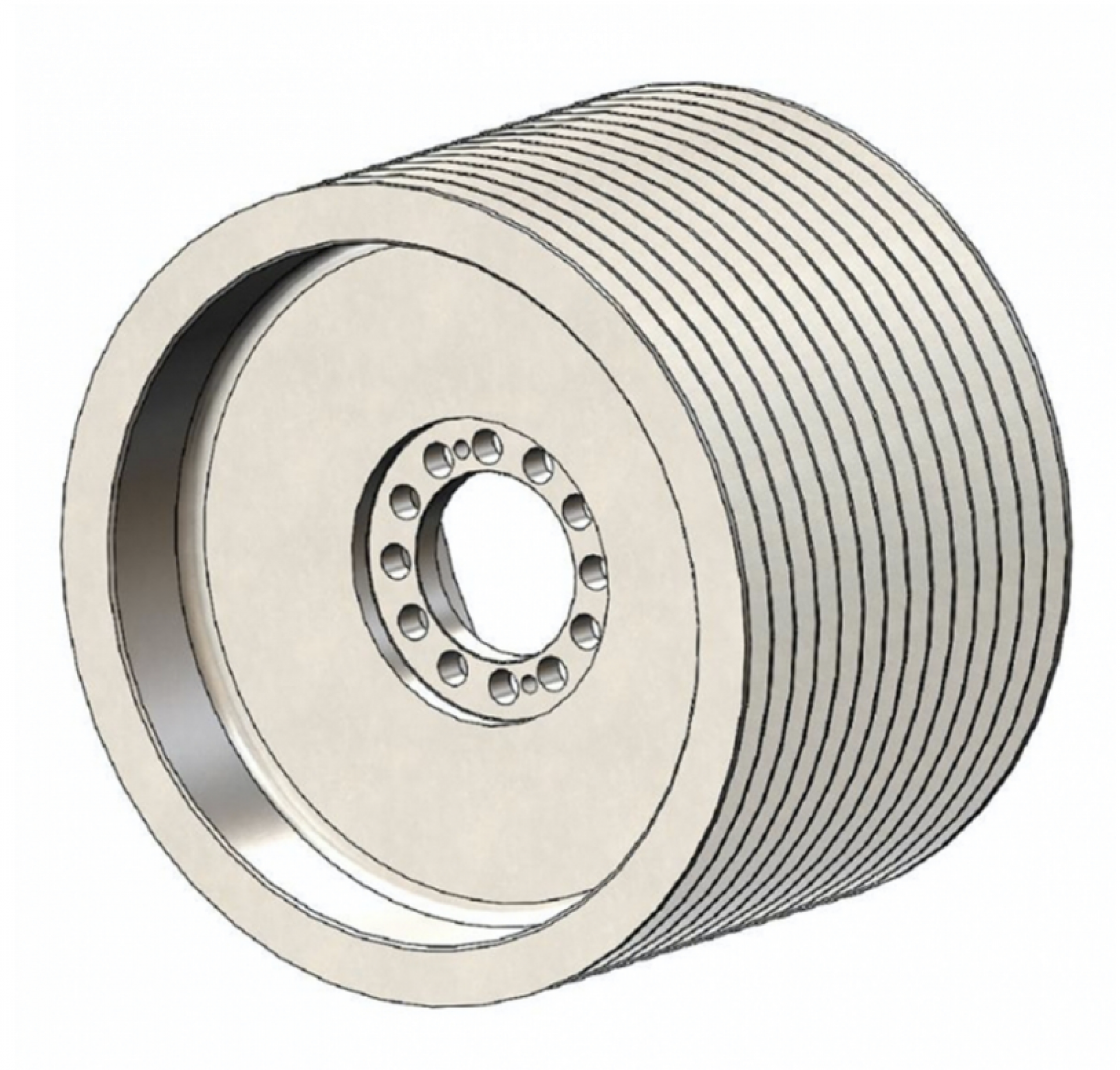

Sheaves 14 grooves

Tecno Meccanica Emiliana is be able to realize different types of Sheaves 14 grooves, for technical features and sizes.

It uses for the design the innovative FEM system for structural calculation.

Steels, only Italian origin, heat treated give the product excellent quality, durability and reliability in use.Each Sheave 14 grooves that we realize, within the throat undergoes a treatment to improve wear resistance and to increase durability in time.

During the working cycle, Sheaves 14 grooves are subject to strict non-destructive testing, as ultrasound inspections and penetrant tests.

To ensure the final suitability of all the products, after every single processing we perform strict dimensional inspections.

All mechanical processes are performed at our factory.

Find out more
Discover all our components

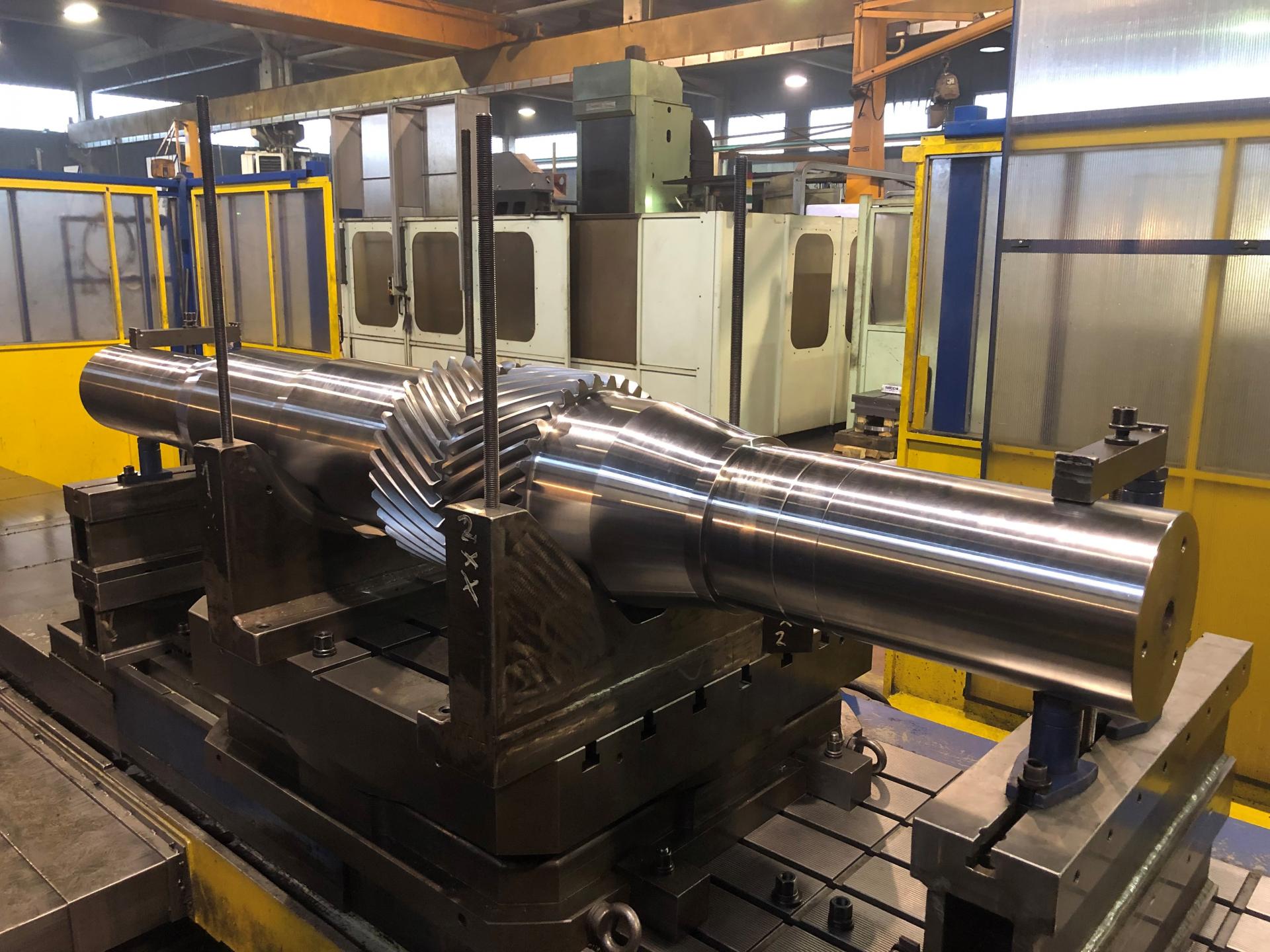

Machinery and Workings

Tecno Meccanica Emiliana has the following machines.

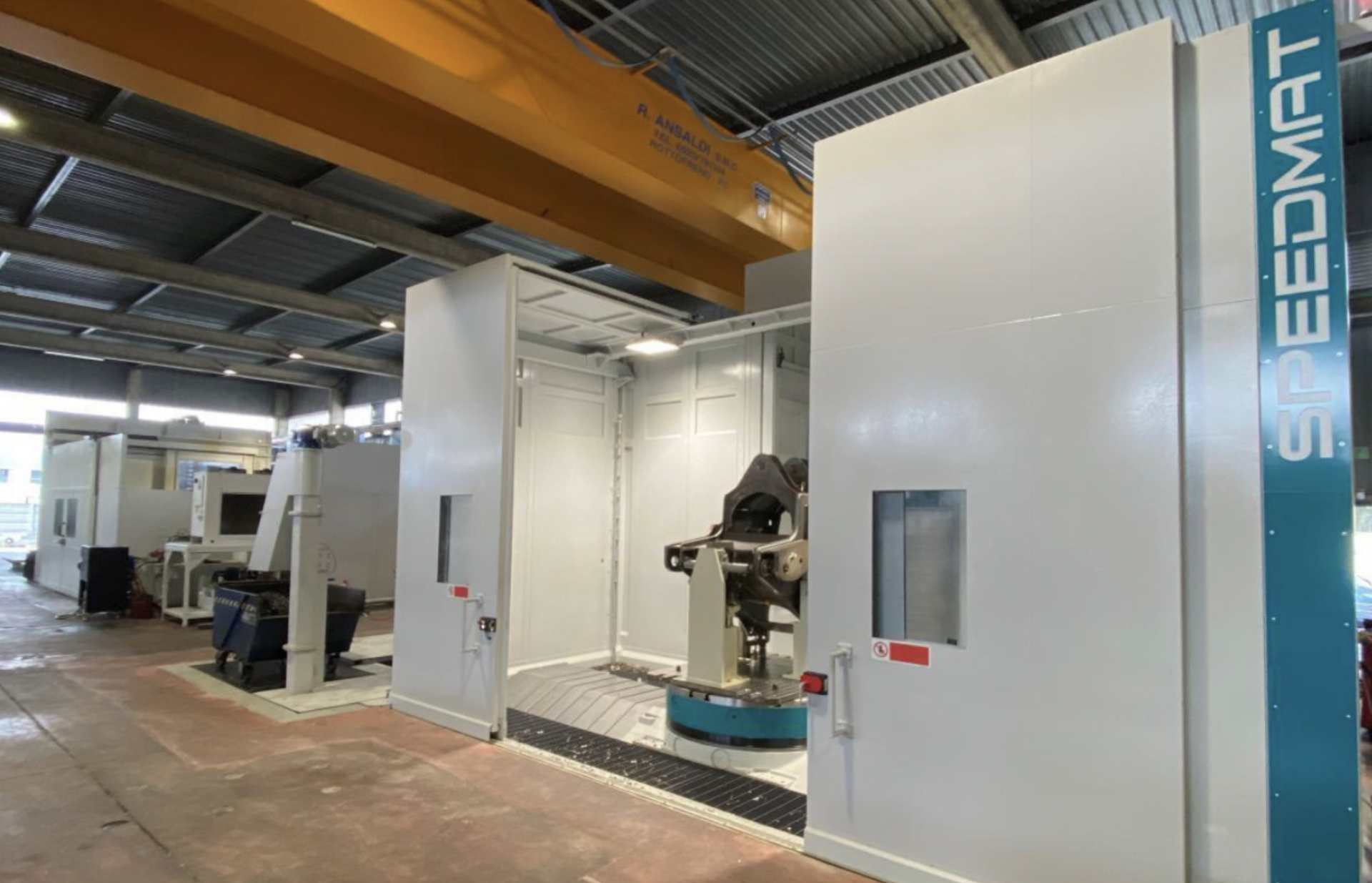

  • N. 01 Pama milling machine “SPEEDMILL 2000” with moving column installed. Control SIEMENS 840D SL. X= 6000mm; Y=2500mm, Z=1500mm. Rapid tranverse speed 35m/min (X) and 30m/min (Y and Z).

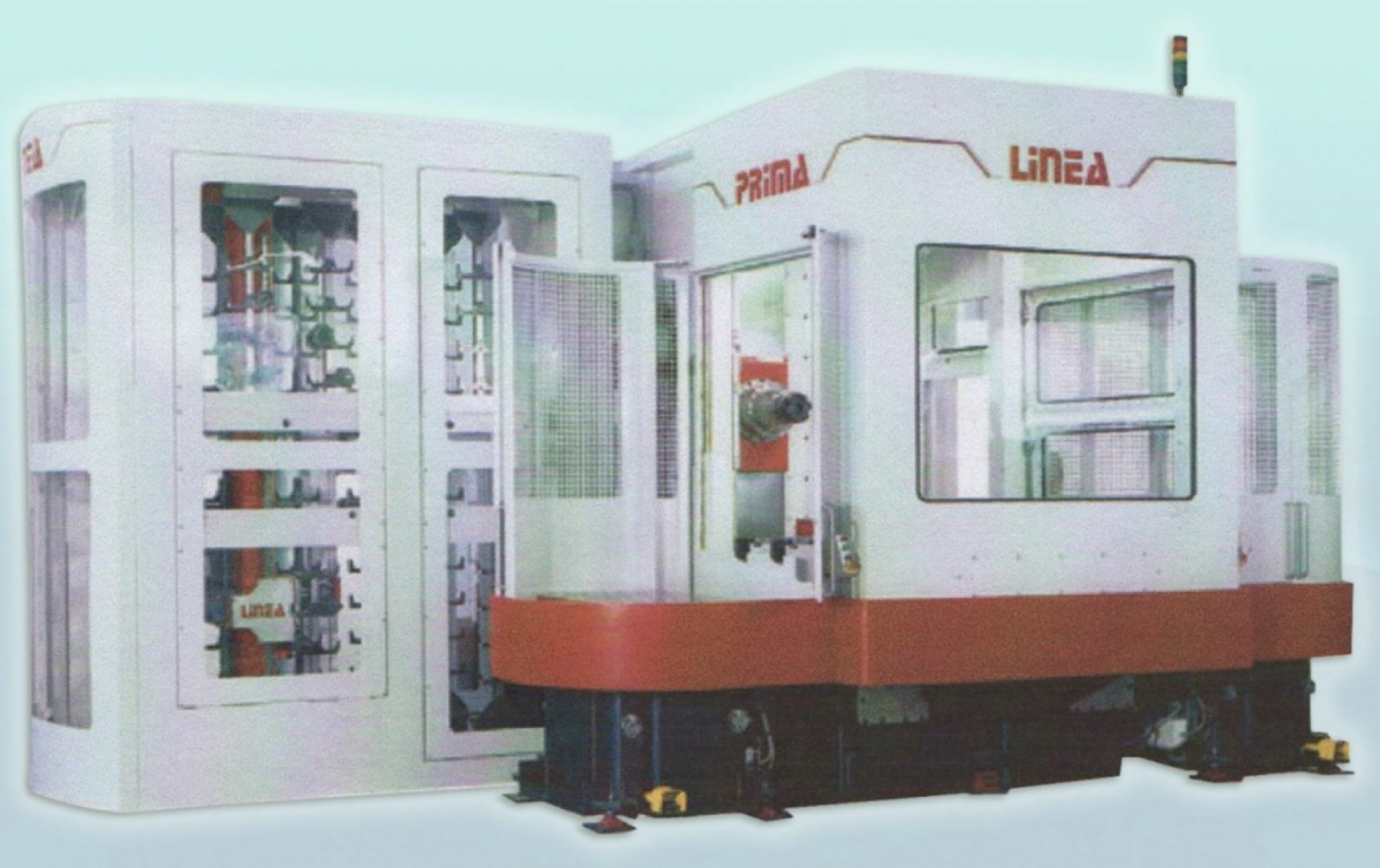

  • N. 01 Work Center “Linea” with tool magazine to 166 places. Rotary table in continuos CN. X= 1320 mm; Y= 1200mm; Z= 1250mm. Two pallets 1000x800mm
  • N. 01 Work Center “Mandelli” with tool magazine to 60 places. Rotary table in continuos CN. X= 1500mm; Y= 900mm; Z= 900mm.

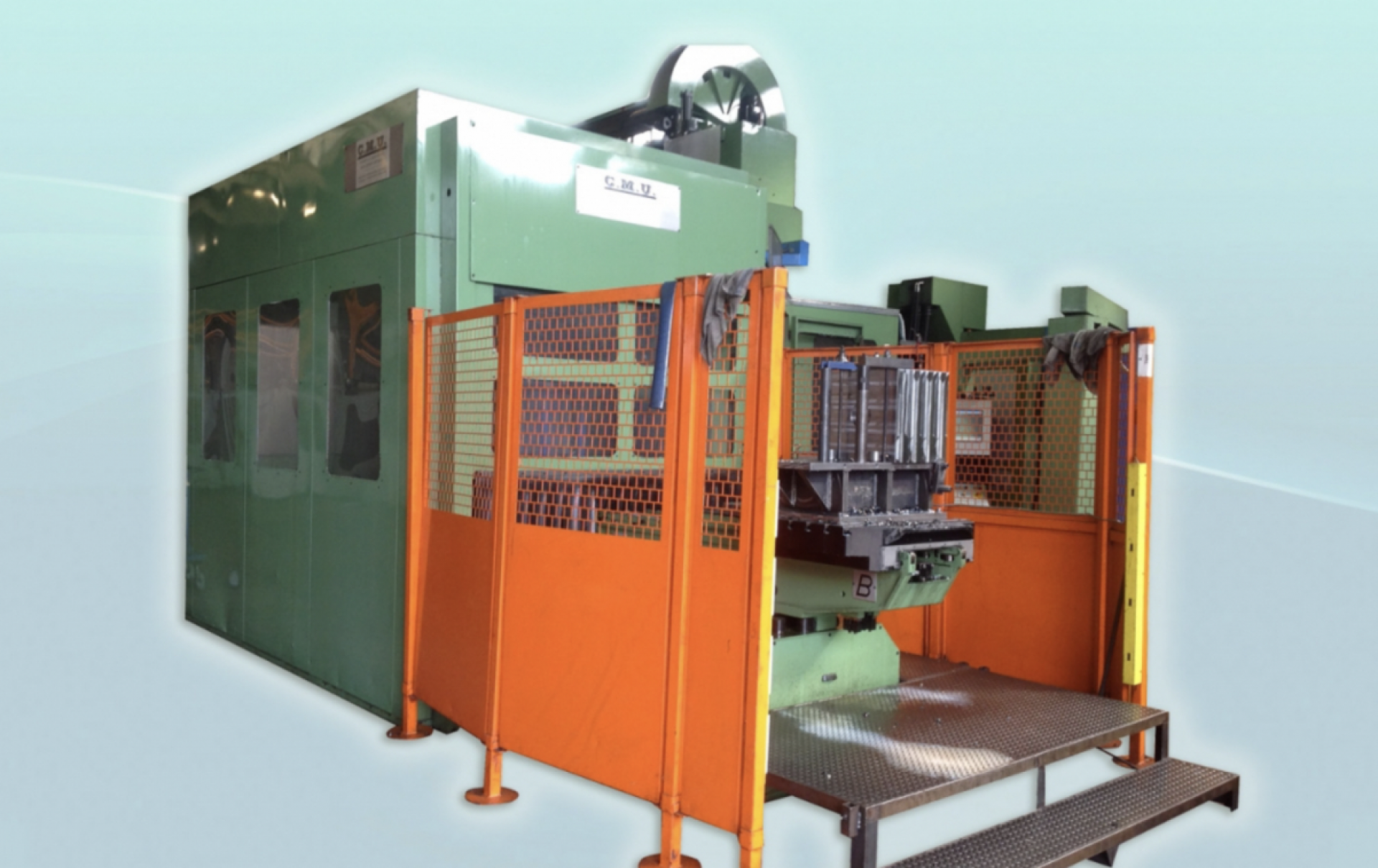

  • N. 01 Work Center “Secmu” with tool magazine to 92 places. Rotary table indexed 1000mm X 1000mm n.720 positions CN. X= 3000mm; Y=1400mm; Z=1300mm
  • N. 01 Vertical Work Center “Takisawa” with tool magazine to 18 places. Table 900mm X 410mm. X= 760mm; Y= 410mm; Z= 460mm
  • N. 01 Milling Machine “Secmu” with Rotary Table indexed 1.000mm X 1.000mm with 720 positions. Universal head birotary X= 3000mm; Y= 1700mm; Z= 1300mm
  • N. 01 Milling Machine “Secmu” with Rotary Table indexed 1.000mm X 1.000mm with 720 positions manual rotary table indexed 800mm X 800mm. N.720 positions universal head birotary X= 2500mm; Y= 1400mm; Z= 1300mm
  • N. 01 Milling Machine “Secmu” with rotary table 520mm X 520mm N. 720 positions Manual. X= 1000mm; Y= 610mm; Z= 600mm

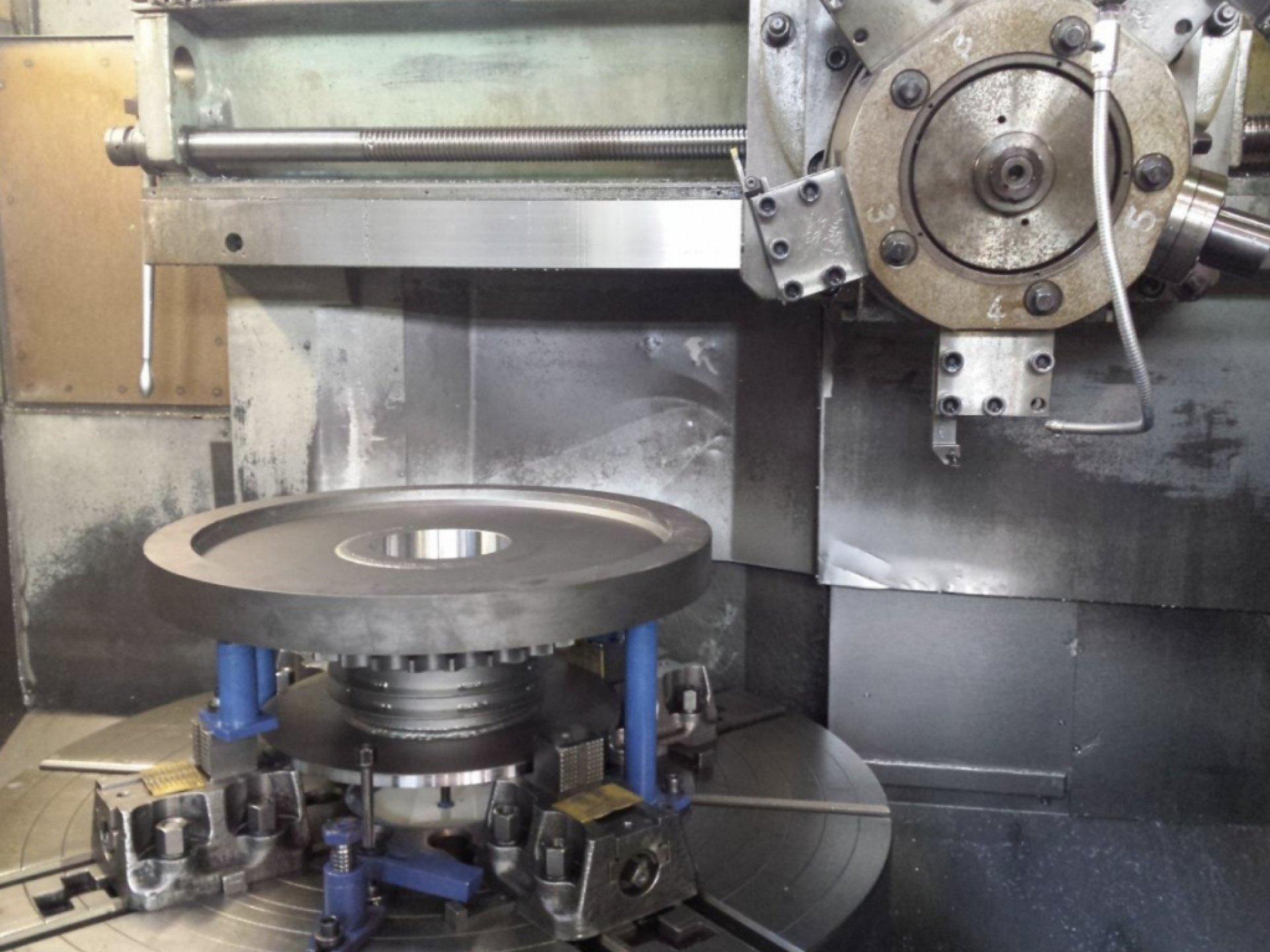

  • N. 01 Vertical Lathe Tower Tool to 5 attacks. Max turning Ø 1600, Height 900mm Weight 6300Kg
  • N. 01 Parallel Lathe machine displayed. Tips Height 245x1500
  • N. 01 Parallel Lathe Tips Height 355x3000mm‐ DEEP HOLE DRILLING SYSTEM EJECTOR SANDVIK
  • N. 01 Parallel Lathe Tips Height 260x2000mm
  • N. 01 Parallel Lathe Tips Height 180x1500mm
  • N. 01 Tangential Grinding 600x400mm CF Magnetic Complete Piano.
  • N. 02 Radial Drill
  • N. 01 Rotary Table 650x650mm Manual
  • N. 02 Rotary Table 520x520mm Manual.
  • N. 01 Rotary Table 420x420mm Manual
  • N. 01 Crane Flow 50 q
  • N. 01 Crane Flow 32 q
  • N. 01 Crane Flow 125 q
  • N. 10 Jib Crane
  • N. 02 Lift Truck
  • N. 01 D’ Andrea Head U‐Tronic 3‐360S

  • N. 01 Arm Measurement “Hexagon Mod. TELMN500

MACHINERY CARPENTRY OPERATIONAL UNITS

  • N. 01 WELDING MACHINE MILLER XMT 456
  • N. 01 WELDING MACHINE MILLER XMT 305
  • N. 01 WELDING MACHINE MILLER XMT 304
  • N. 01 WELDING MACHINE MILLER INFINITY 45
  • N. 01 GOUGING SIO AS550
  • N. 01 SHEAR SCHIAVI (cutting profit: length = mm. 2500; thickness = mm. 12)
  • N. 01 CROPPER BIANCO 350
  • N. 01 POSITIONER SIMAC
  • N. 01 OSSITAGLIO PORTABLE IK-92 PUMA
  • N. 01 INSTRUMENT CONTROL WELDING SILVER JOKE
  • N. 01 PLANT WELDING FUMES INTAKE AIRBRAVO EG
  • N. 01 PRESS
  • N. 01 DRILLING AND RADIAL
  • N. 01 CRANE FLOW 50 QUINTALS
  • N. 01 JIB CRANE
  • N. 01 LIFT TRUCK
  • N. 01 SAW – SUBMERGED ARC WELDING


The Carpentry/welding department is separated from the machine shop and occupies an area of 1200 square metres

DESIGN CAD/CAM 3D

Besides the production, Tecno Meccanica Emiliana is able to offer 3D CAD/CAM design service. This allows us to design and produce parts even starting from simple drawings or samples already made and free of designs.

In addition we have three-dimensional tools for detection of dimensional measurements of the samples.

Tecno Meccanica Emiliana, within its office of study and planning, using the innovative FEM system for structural analysis of every single detail that realizes.

HYDROSTATIC TESTS

Tecno Meccanica Emiliana perform hydrostatic tests on assembled Fluid-End, individual modules and crosses, up to pressures of 22.500 psi (1.555 bar).

Hydrostatic tests are also carried out on behalf of third parties. If you need this service please contact us

NON-DESCTRUCTIVE AND DIMENSIONAL TESTS

To avoid that the pieces present defects, Tecno Meccanica Emiliana run inside strict non-destructive testing, such as ultrasound and liquid penetrant, and severe dimensional controls to ensure the final suitability of all the products it makes.

MEASUREMENT INSTRUMENTS

Tecno Meccanica Emiliana has the following measurement instruments to perform testing of details that realizes:


- ARM MEASUREMENT "HEXAGON" MOD. TELMN500 CALIBRATION THOUSANDTH

- ALTIMETERS - MEASURE MAX 700 mm

- INTERNAL MICROMETERS - MEASURE FROM 50 mm TO 1010 mm

- EXTERNAL MICROMETERS - MEASURE MAX 800 mm

- BORE GAUGES - MEASURE MAX 400 mm

- DIGITAL AND ANALOG GAUGES - MEASURE MAX 1500 mm

- ROUGHNESS SURTRONIC 10

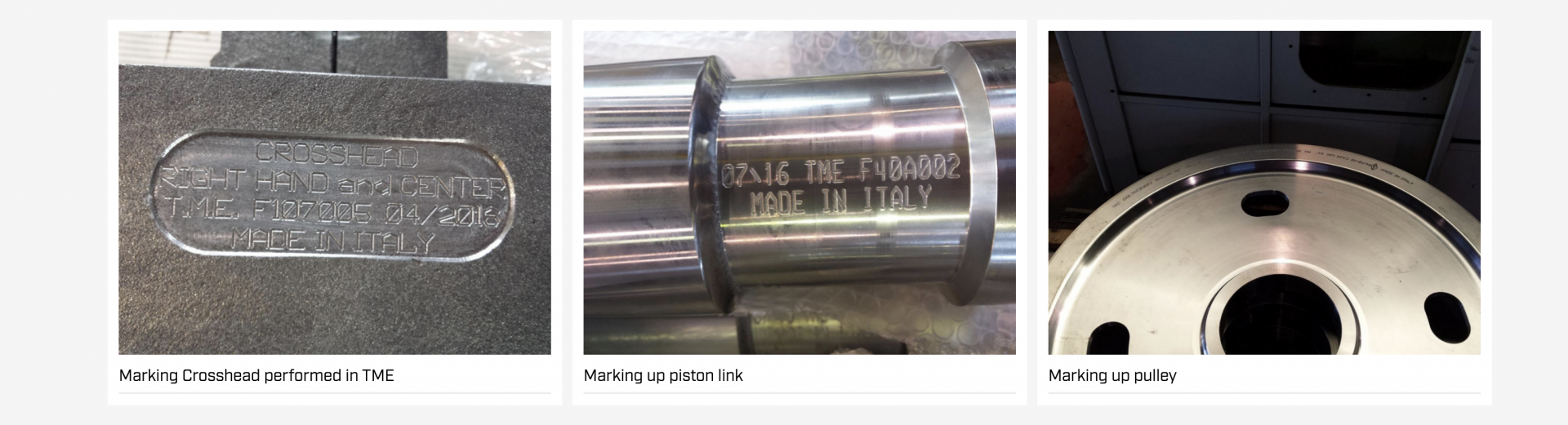

MARKING

Tecno Meccanica Emiliana performs marking on all details that realizes.

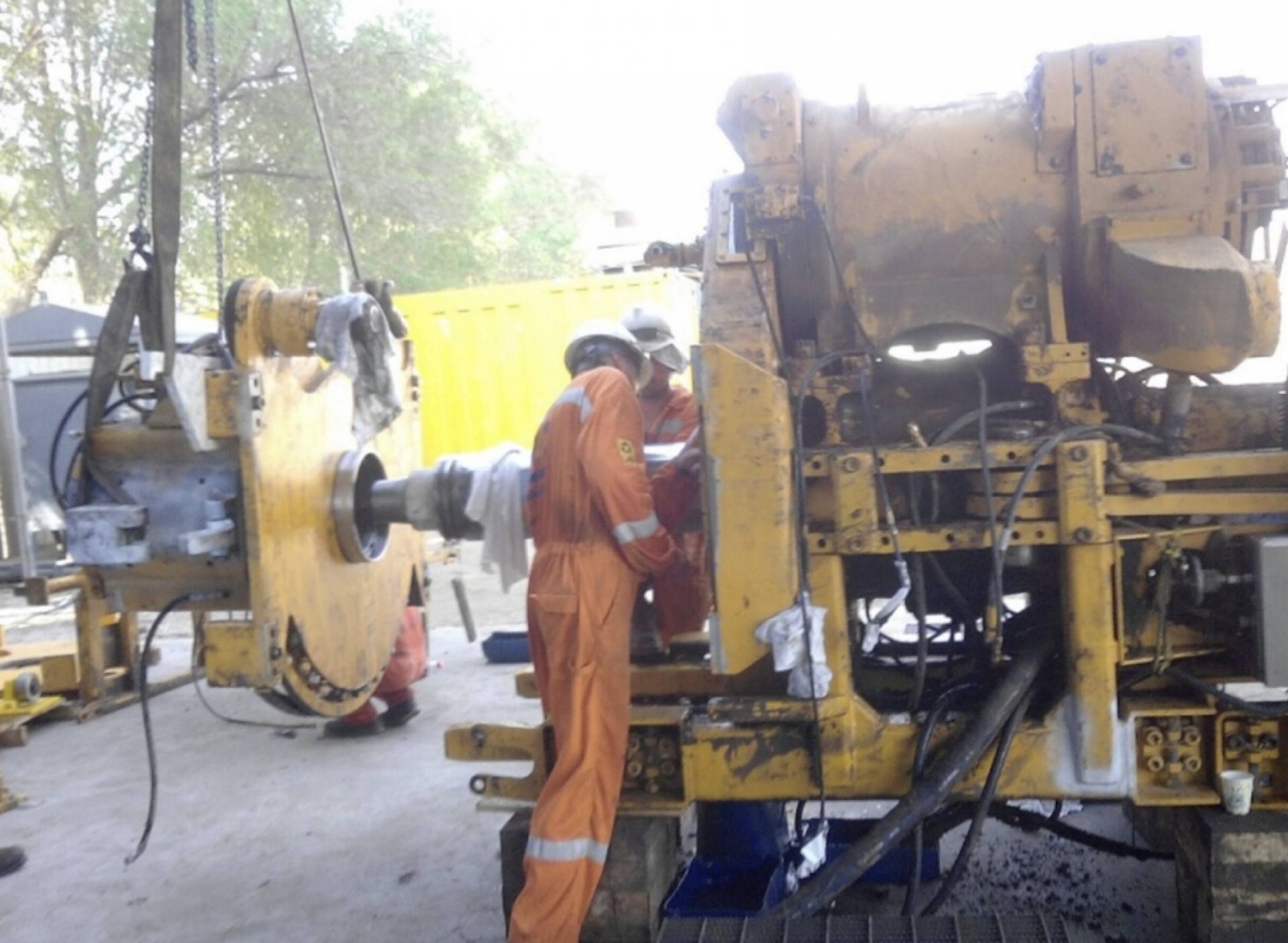

SERVICE OVERHAUL AND REPAIR

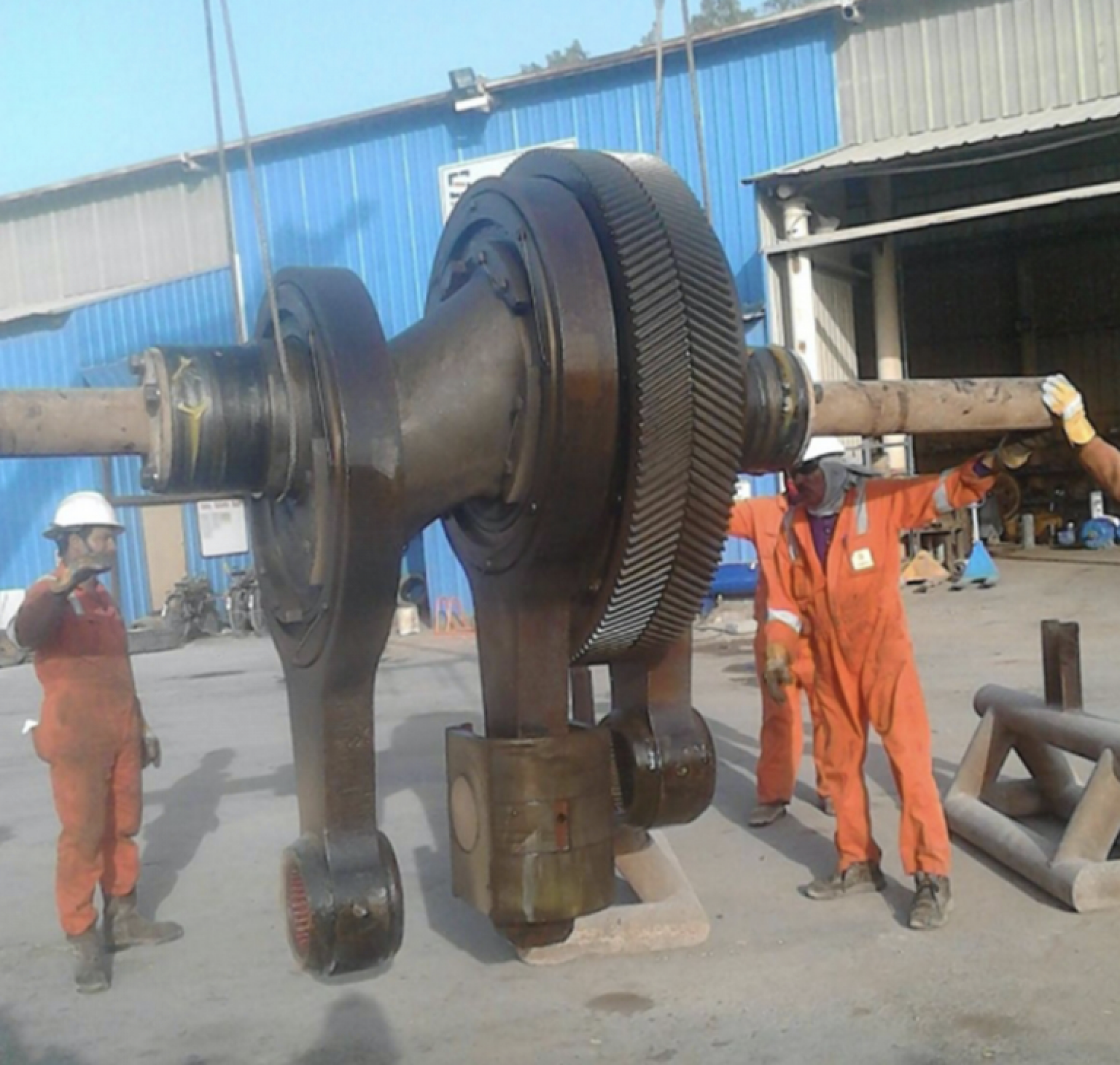

Tecno Meccanica Emiliana also proposes a overhaul service and repair for Mud Pumps, Top drive, Drawwork, Iron Roughneck, Crown Block, Traveling Block and worn or damaged components accondirg with API Standards and OEM procedures; this activity involves preventive technical analysis and consequential economic assessment to enable customers to make sure there is value for money compared to the purchase of the new.

Quality and certifications

QUALITY POLICY

Quality is the set of properties and characteristics of a product or service that give it the ability to meet expressed or implicit needs. Attached, below, you can download the document in which we declare how we manage the quality policy in TME.

Download

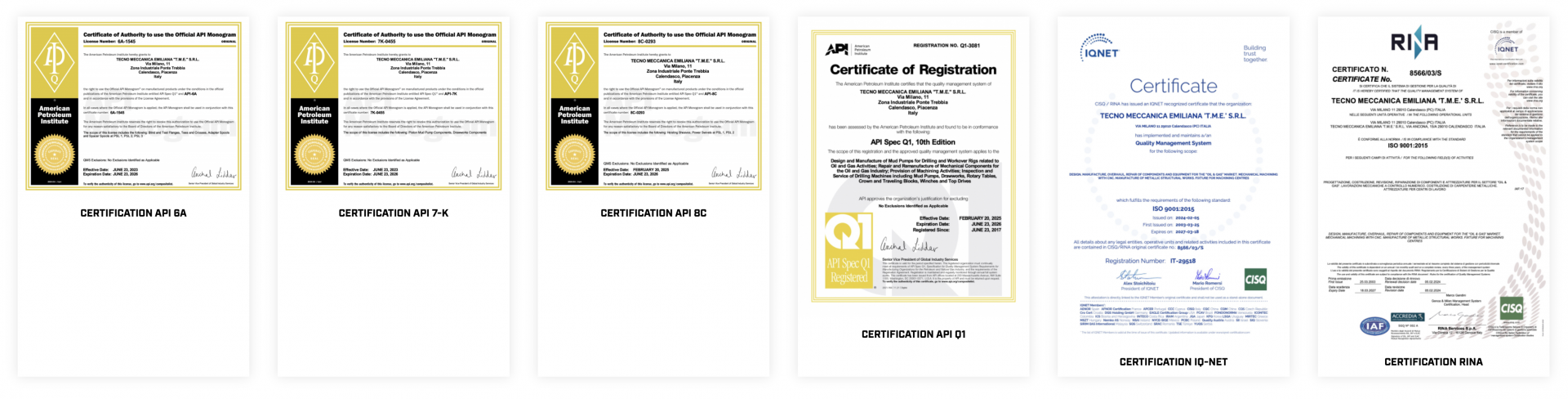

Tecno Meccanica Emiliana, with a view to continuous improvement of its business, has achieved the following certifications over the years:
